Ball valve manufacturer

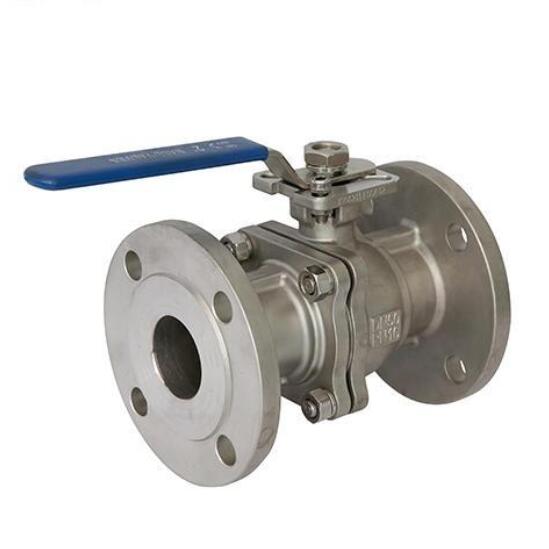

Stainless steel ball valve JIS 20K

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:JIS 20K
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange
  • Feature:JIS Standard ball valve
Stainless steel ball valve JIS 20K introduction:
China stainless steel ball valve manufacturer,factory,company and supplier,Stainless steel ball valve JIS 20K is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role.Stainless steel ball valve JIS 20K is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

Stainless steel ball valve JIS 20K Specification:
Product Name Stainless steel ball valve JIS 20K
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure JIS 20K
5. Connection Ends Flange
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Stainless steel ball valve JIS 20K Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
