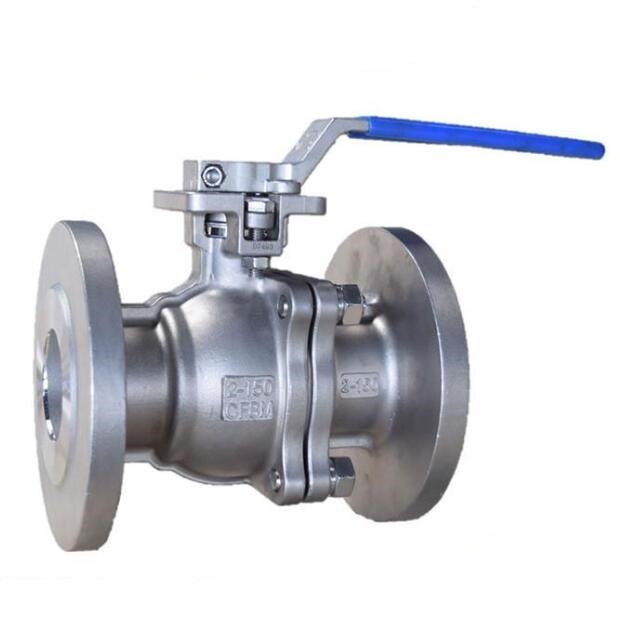

Ball valve manufacturer

Stainless steel ball valve price list

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN16-PN420 CL150-CL2500
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange or others
  • Feature:Stainless steel ball valve with good price
China stainless steel ball valve manufacturer,factory and supplier with good price, Stainless steel ball valve price list with different pressure class and connection end,material is CF8,CF8M,CF3,CF3M,F304,F316,F51,F51 or other stainless steel.

Stainless steel ball valve specification:
Product Name Stainless steel ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size 1/2~4 inch ( DN15~DN100)
3. Port Full Port
4. Working Pressure 1000 WOG,2000 WOG
5. Connection Ends Threaded end, welded end, flange end
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Stainless steel ball valve price list
Model (CF8,F304,PTFE)  Size( Flange type) Price      (150LB)
         Q41F-150LBP                     1/2''             $ 60
Q41F-150LBP 3/4" $ 70
Q41F-150LBP 1" $ 80
Q41F-150LBP 1 1/4" $ 100
Q41F-150LBP 1 1/2" $ 130
Q41F-150LBP 2" $ 190
Q41F-150LBP 2 1/1" $ 270
Q41F-150LBP 3" $ 350
Remark: Above is retail price, there will be discount according to the quantity and final order value.
