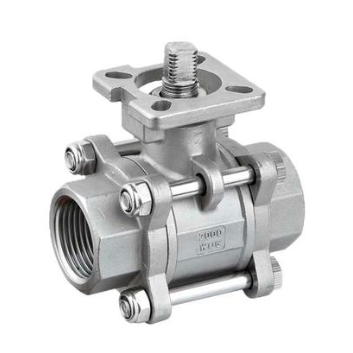

SS304 Stainless steel BSPT threaded ball valve

SS304 Stainless steel BSPT threaded ball valve introduction:
SS304 Stainless steel BSPT threaded ball valve seat adopts elastic sealing structure, which is reliable and easy to open and close.SS304 Stainless steel BSPT threaded ball valve stem adopts a down-mounted structure with an inverted seal, so that the stem will not be rushed out when the valve cavity is under abnormal pressure.SS304 Stainless steel BSPT threaded ball valve can be equipped with ISO support platform and locking device.The 90° switch positioning mechanism can be set, stainless steel ball valve can be locked as needed to prevent misoperation. SS304 Stainless steel BSPT threaded ball valve driving mode is manual, electric and pneumatic.

SS304 Stainless steel BSPT threaded ball valve is widely used in  pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role,the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

SS304 Stainless steel BSPT threaded ball valve Specification:

Product Name	SS304 Stainless steel BSPT threaded ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size	1/2~3 inch ( DN15~DN80)
3. Port	Full Port
4. Working Pressure	1000PSI 2000PSI
5. Connection Ends	Female
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

SS304 Stainless steel BSPT threaded ball valve Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
