Ball valve manufacturer

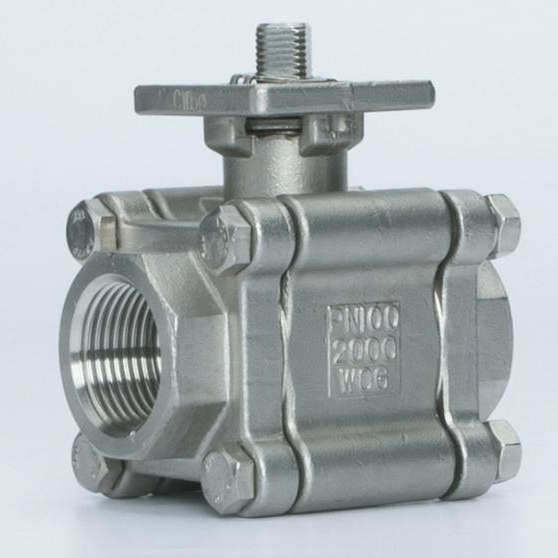

2000 PSI threaded stainless steel ball valve

Port size：1/2"~3" (DN15~DN80)
Pressure：2000 PSI
Structure：Full bore, 3PCS
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：CF8 CF8M CF3 CF3M or other stainless steel
Connection：Thread:BSP,BSPT,NPT,G,RC
Feature：ISO 5211 mounting pad

Product Description

2000 PSI threaded stainless steel ball valve introduction:
2000 PSI threaded stainless steel ball valve seat adopts soft sealing structure, which is reliable and easy to open and close.2000 PSI threaded stainless steel ball valve can be equipped with ISO support platform and locking device.The 90° switch positioning mechanism can be set, 2000 PSI threaded stainless steel ball valve can be locked as needed to prevent misoperation,the ball valve driving mode is manual, electric and pneumatic.

2000 PSI threaded stainless steel ball valve is widely used in pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role,the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

2000 PSI threaded stainless steel ball valve Specification:

Product Name	2000 PSI threaded stainless steel ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~3 inch ( DN15~DN80)
3. Port	Full Port
4. Working Pressure	2000PSI
5. Connection Ends	Female
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

2000 PSI threaded stainless steel ball valve Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
