Ball valve manufacturer

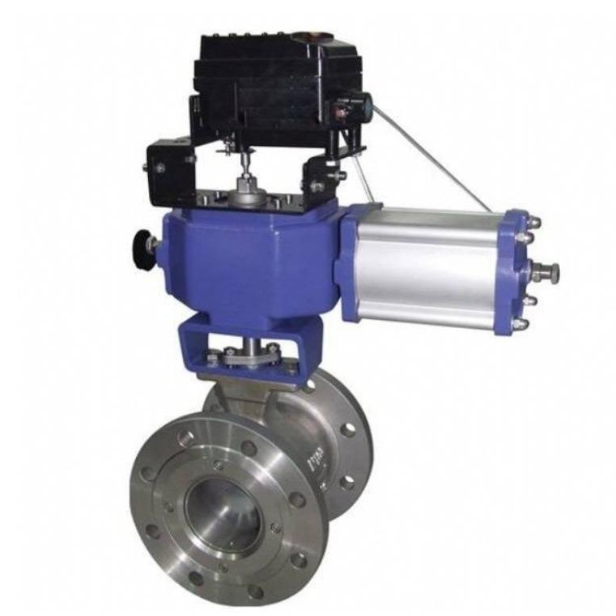

Pneumatic actuated segment ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN40 CL150-CL300
  • Structure:Segmented V type ball
  • Medium:Particles,high viscosity medium
  • Temperature :-40~200℃,-60~450℃
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flange,Wafer
  • Feature:On-off or reguating control
Pneumatic actuated segment ball valve Overview:
Pneumatic actuated segment ball valve is compased of pneumatic actuator (double acting or single acting) and V notch segmented ball valve (flange type or wafer type), Pneumatic actuated segment ball valve has the V type gap in the segmented ball valve plug which will do wedge-shaped sheared action when the Pneumatic actuated segment ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat. Pneumatic actuated segment ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic actuated segment ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic actuated segment ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.

Pneumatic actuated segment ball valve main technical data:
Model
Structure Segment ball
Nominal Diameter Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating ASME Class 150 ~ CLASS 300
Connection Flange Type (RF、RTJ、FM)、Wafer type
Body Material WCB, WCC, WC6, WC9, LCB, CF8, CF8M, CF3 .etc
Trim Material Carbon steel、304、316、316L、17-4PH
Packing PTFE, Flexible Graphite
Washer Serrated washer (extremely soft CS, SUS316.etc), wound gaskets
Characteristic EQP, Quick open
Ratio 100:1
Seal Surface Soft seal 、 Metal seal
Travel 90°
Coating Black for Carbon Steel, Stainless steel without coating

Pneumatic actuated segment ball valve pneumatic actuator parameter:
ModeSpec Pneumatic Piston Crank Arm Piston
Power/Air Supply Air supply: 400~600Kpa Air supply: 400~600Kpa
Joint Rc1/4”, Rc3/8”, Rc1/2”, ----------
Direct action Air increase, valve close Signal increase, valve close
Reverse action Air increase, valve open Signal increase, valve open
Double action According to signal converting
Ambient Temp -30~+70℃ -30~+70℃
Standard Coating Yellow ------------
Accessories Solenoid valve, Limited switch
Air filter, locker, etc.
Solenoid valve, Limited switch
Air filter, locker, etc.

Pneumatic actuated segment ball valve performance:
Rated CV According to “Flow Characteristic”
Characteristic Equal to EQP
Ratio 100:1
Leakage ANSI/FCI70-2 和 IEC60534-4 Class VI-Soft; Class IV – metal seat
Hysteresis 3% (Positioner), 1% (Without positioner)
Linear 5% (Positioner), 1% (Without positioner)

Pneumatic actuated segment ball valve (bare shaft) structure:
Segmented ball valve structure


Pneumatic actuated segment ball valve Parts details list:
No Name Qty Material
1 Valve body 1 WCB CF8 CF8M
2 Segment ball 1 CF8+HCr CF8+HCr CF8M+HCr
3 Cylindrical pin 2 304 304 316
4 Seat 1 304+Hard Alloy 304+Hard Alloy 316
5 Spring 1 316 316 316
6 O ring 1 Fluororubber Fluororubber Fluororubber
7 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
8 Down stem 1 20Cr13 304 316
9 O Ring 1 Fluororubber Fluororubber Fluororubber
10 Back gland 1 WCB CF8 CF8M
11 Ring gasket 1 PTFE PTFE PTFE
12 Adjustable gasket 1 PTFE PTFE PTFE
13 Flat gasket 4 Q235 304 304
14 Bolt 2 25# 304 304
15 Double screw bolt 1 25# 304 304
16 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
17 Flat key 1 20Cr13 304 316
18 Down packing 1 PTFE PTFE PTFE
19 Middle packing 1 set PTFE PTFE PTFE
20 Up packing 1 PTFE PTFE PTFE
21 Packing gland 1 WCB CF8 CF8M
22 Bolt 2 35# 304 304
23 Up stem 1 20Cr13 304 316



Pneumatic actuated segment ball valve characteristisc:

Pneumatic segmented V notch ball control valve characteristic

Pneumatic actuated segment ball valve Rated CV:
Size mm 25 32 40 50 65 80 100 125 150
Rated Cv 27 47 70 135 210 390 560 790 1130

Size mm 200 250 300 350 400 450 500 600 700
Rated Cv 1860 2900 4320 6640 8000 10000 12200 17270 25000



Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
