Ball valve manufacturer

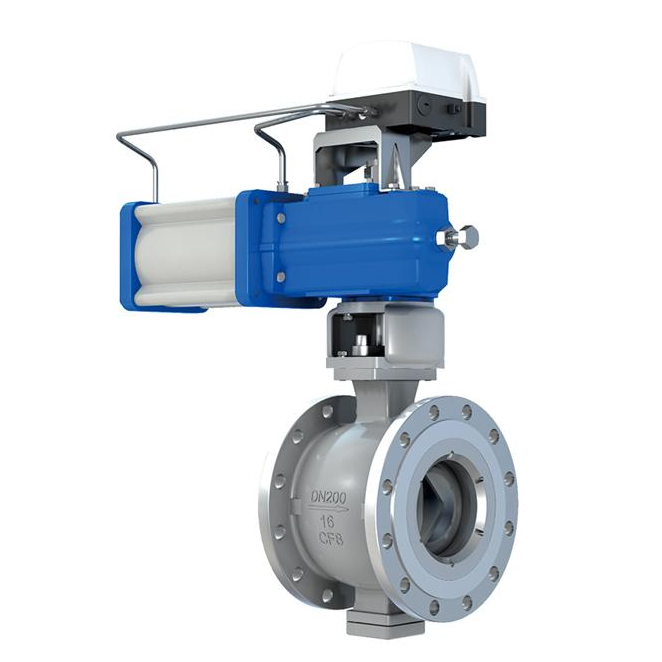

Pneumatic V notch segmented ball valve

  • Port size:1”~28”(DN25~DN700)
  • Pressure:PN10-PN40 CL150-CL300
  • Structure:Segmented V type ball
  • Medium:slurry, drainage, fiber and small particles,etc.
  • Temperature :-29~450℃
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flange,Wafer
  • Feature:Pnuematic actuated:double or single acting
Pneumatic V notch segmented ball valve Overview:
Pneumatic V notch segmented ball valve is compased of pneumatic actuator (double acting or single acting) and V notch segmented ball valve (flange type or wafer type) has the V type gap in the valve plug which will do wedge-shaped sheared action when the Pneumatic V notch segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat. The Pneumatic V notch segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic V notch segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic V notch segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.

Pneumatic V notch segmented ball valve main technical data:
Pneumatic V notch segmented ball valve ball valve technical:
Model
Structure Segment ball
Nominal Diameter Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating ASME Class 150 ~ CLASS 300
Connection Flange Type (RF、RTJ、FM)、Wafer type
Body Material WCB, WCC, WC6, WC9, LCB, CF8, CF8M, CF3 .etc
Trim Material Carbon steel、304、316、316L、17-4PH
Packing PTFE, Flexible Graphite
Washer Serrated washer (extremely soft CS, SUS316.etc), wound gaskets
Characteristic EQP, Quick open
Ratio 100:1
Seal Surface Soft seal 、 Metal seal
Travel 90°
Coating Black for Carbon Steel, Stainless steel without coating

Pneumatic V notch segmented ball valve pneumatuc actuator technical:
Model Spec Pneumatic Piston Crank Arm Piston
Power/Air Supply Air supply: 400~600Kpa Air supply: 400~600Kpa
Joint Rc1/4”, Rc3/8”, Rc1/2”, ----------
Direct action Air increase, valve close Signal increase, valve close
Reverse action Air increase, valve open Signal increase, valve open
Double action According to signal converting
Ambient Temp -30~+70℃ -30~+70℃
Standard Coating Yellow ------------
Accessories Solenoid valve, Limited switch
Air filter, locker, etc.
Solenoid valve, Limited switch
Air filter, locker, etc.

Pneumatic V notch segmented ball valve performance:
Rated CV According to “Flow Characteristic”
Characteristic Equal to EQP
Ratio 100:1
Leakage ANSI/FCI70-2 和 IEC60534-4 Class VI-Soft; Class IV – metal seat
Hysteresis 3% (Positioner), 1% (Without positioner)
Linear 5% (Positioner), 1% (Without positioner)

Pneumatic V notch segmented ball valve (bare shaft) structure:
Segmented ball valve structure


Pneumatic V notch segmented ball valve Parts details list:
No Name Qty Material
1 Valve body 1 WCB CF8 CF8M
2 Segment ball 1 CF8+HCr CF8+HCr CF8M+HCr
3 Cylindrical pin 2 304 304 316
4 Seat 1 304+Hard Alloy 304+Hard Alloy 316
5 Spring 1 316 316 316
6 O ring 1 Fluororubber Fluororubber Fluororubber
7 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
8 Down stem 1 20Cr13 304 316
9 O Ring 1 Fluororubber Fluororubber Fluororubber
10 Back gland 1 WCB CF8 CF8M
11 Ring gasket 1 PTFE PTFE PTFE
12 Adjustable gasket 1 PTFE PTFE PTFE
13 Flat gasket 4 Q235 304 304
14 Bolt 2 25# 304 304
15 Double screw bolt 1 25# 304 304
16 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
17 Flat key 1 20Cr13 304 316
18 Down packing 1 PTFE PTFE PTFE
19 Middle packing 1 set PTFE PTFE PTFE
20 Up packing 1 PTFE PTFE PTFE
21 Packing gland 1 WCB CF8 CF8M
22 Bolt 2 35# 304 304
23 Up stem 1 20Cr13 304 316


Pneumatic V notch segmented ball valve characteristisc:

Pneumatic V notch segmented ball valve characteristic

Pneumatic V notch segmented ball valve Rated CV:
Size mm 25 32 40 50 65 80 100 125 150
Rated Cv 27 47 70 135 210 390 560 790 1130

Size mm 200 250 300 350 400 450 500 600 700
Rated Cv 1860 2900 4320 6640 8000 10000 12200 17270 25000

Pneumatic V notch segmented ball valve (double acting actuator) :
Pneumatic segmented V notch ball control valve

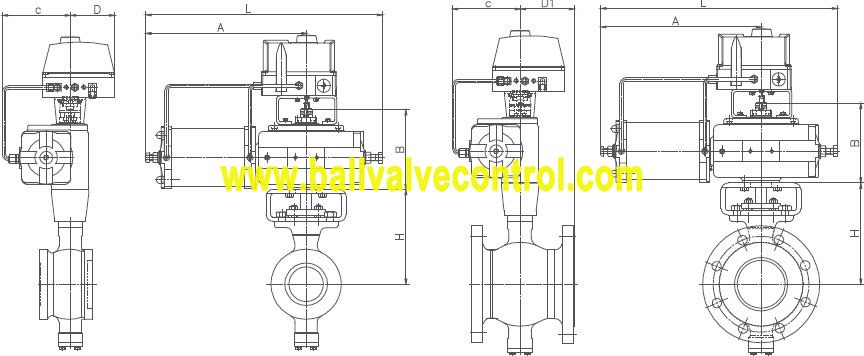

Pneumatic V notch segmented ball valve dimension                         Unit: mm
DN A L B H C C D1
25 270 390 140 133 105 85 85
32 270 390 140 138 105 85 85
40 275 395 140 140 115 85 85
50 275 395 140 150 115 85 85
65 296 440 150 165 125 85 85
80 300 445 150 178 135 85 90
100 300 445 150 190 135 85 102
125 343 507 155 205 155 85 97
150 343 507 155 235 170 85 129
200 418 617 190 265 200 85 123
250 502 742 224 317 260 92 149
300 520 760 224 362 280   148
350 605 900 277 437 330   179
400 620 900 277 492 330   180
450 770 1200 330 570 400   230
500 770 1200 330 640 400   280
Note: The above dimension is based on PN16 which equipped with double acting pneumatic actuator.
