Ball valve manufacturer

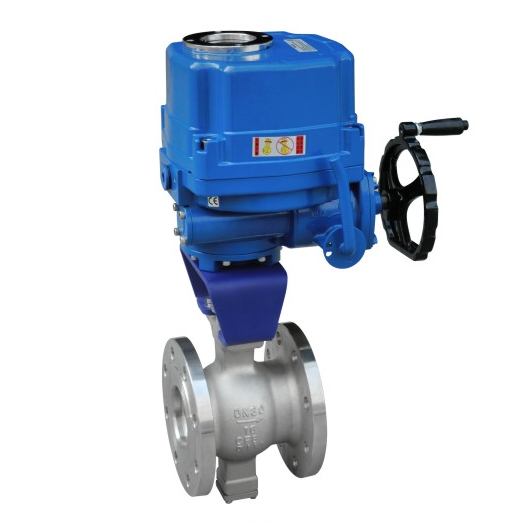

Electric segmented V port ball valve

  • Port size:1”~28”(DN25~DN700)
  • Pressure:PN10-PN40 CL150-CL300
  • Structure:Segmented V type ball
  • Medium:Particles,high viscosity medium
  • Temperature :-40~200℃,-60~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Wafer
  • Feature:V port ball for reguating function
Electric segmented V port ball valve introduction
Electric segmented V port ball valve equipped with electric actuator, control operation can be achieved by inputting control signal (4-20mA DC) and single-phase power supply, Electric segmented V port ball valve to realize the adjustment of pressure, flow rate, temperature, liquid level and other parameters.V-cut on the Electric segmented V port ball valve core, and the hard seal seat rotation generated shear force, fiber can be cut off, to prevent stuck.The Electric segmented V port ball valve has the characteristics of circulation ability, high adjusting precision, large adjustable ratio, good sealing and light weight.Electric segmented V port ball valve is suitable for most occasions except for small diameter, Angle type, three-way connection, it is the substitute for imported products, Electric segmented V port ball valve especially suitable for mud and medium containing fiber, and medium containing micro solid suspended matter.Electric segmented V port ball valve is widely used in automatic control system of industrial process in paper industry, sugar industry, petroleum industry, chemical industry, metallurgy industry, etc.

Electric segmented V port ball valve feature
1. The Electric segmented V port ball valve body integral structure: sandwich-type and flanged V-type ball valve body is the overall side of the structure, strong structural rigidity, is not easy to cause deformation and leakage.
2. Upper and lower self-lubricating bearings: upper and lower self-lubricating bearings are installed in the valve body, with large contact area with the ball valve stem, high bearing capacity, small friction coefficient, so that the valve torque is reduced.
3. The Electric segmented V port ball valve seat can be selected as metal hard seal or PTFE soft seal according to the needs of medium and working condition: hard alloy is surfacing on the surface of metal hard seal valve seat, and hard chrome is plated on the surface of ball or used for spray welding, ion nitriding and other hardening treatment, so as to enhance the service life and temperature resistance of the sealing surface;Soft seal PTFE seat or enhanced PTFE seat has good sealing, corrosion resistance and wide range of adaptability.
4. Economic practicality: light weight of valve body, small stem torque, equipped with pneumatic or electric actuator corresponding specifications small, compared with other types of control valves, cost-effective.
5. The medium adaptation range is wide: because of the Shear force between the V-shaped opening and the seat, and the smooth round of the valve chamber flow, the medium is not easy to store in the chamber, so Electric segmented V port ball valve is suitable for liquid medium, more suitable for the system control with fiber and solid particulate medium.
6. Small flow control: through the small diameter spool special V-opening processing, can achieve small Cv value control.

Electric segmented V port ball valve main technical requirement:
Model
Structure Segment ball
Nominal Diameter Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating ASME Class 150 ~ CLASS 300
Connection Wafer type
Body Material WCB, WCC, WC6, WC9, LCB, CF8, CF8M, CF3 .etc
Trim Material Carbon steel、304、316、316L、17-4PH
Packing PTFE, Flexible Graphite
Washer Serrated washer (extremely soft CS, SUS316.etc), wound gaskets
Characteristic On-off or regualting function
Ratio 100:1
Seal Surface Soft seal 、 Metal seal
Travel 90°
Coating Black for Carbon Steel, Stainless steel without coating

Electric segmented V port ball valve (bare shaft) structure:
Segmented ball valve structure


Electric segmented V port ball valve Parts details list:
No Name Qty Material
1 Valve body 1 WCB CF8 CF8M
2 Segment ball 1 CF8+HCr CF8+HCr CF8M+HCr
3 Cylindrical pin 2 304 304 316
4 Seat 1 304+Hard Alloy 304+Hard Alloy 316
5 Spring 1 316 316 316
6 O ring 1 Fluororubber Fluororubber Fluororubber
7 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
8 Down stem 1 20Cr13 304 316
9 O Ring 1 Fluororubber Fluororubber Fluororubber
10 Back gland 1 WCB CF8 CF8M
11 Ring gasket 1 PTFE PTFE PTFE
12 Adjustable gasket 1 PTFE PTFE PTFE
13 Flat gasket 4 Q235 304 304
14 Bolt 2 25# 304 304
15 Double screw bolt 1 25# 304 304
16 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
17 Flat key 1 20Cr13 304 316
18 Down packing 1 PTFE PTFE PTFE
19 Middle packing 1 set PTFE PTFE PTFE
20 Up packing 1 PTFE PTFE PTFE
21 Packing gland 1 WCB CF8 CF8M
22 Bolt 2 35# 304 304
23 Up stem 1 20Cr13 304 316

Electric segmented V port ball valve characteristisc:

segmented V notch ball control valve characteristic

Electric segmented V port ball valve Rated CV:
Size mm 25 32 40 50 65 80 100 125 150
Rated Cv 27 47 70 135 210 390 560 790 1130

Size mm 200 250 300 350 400 450 500 600 700
Rated Cv 1860 2900 4320 6640 8000 10000 12200 17270 25000


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
