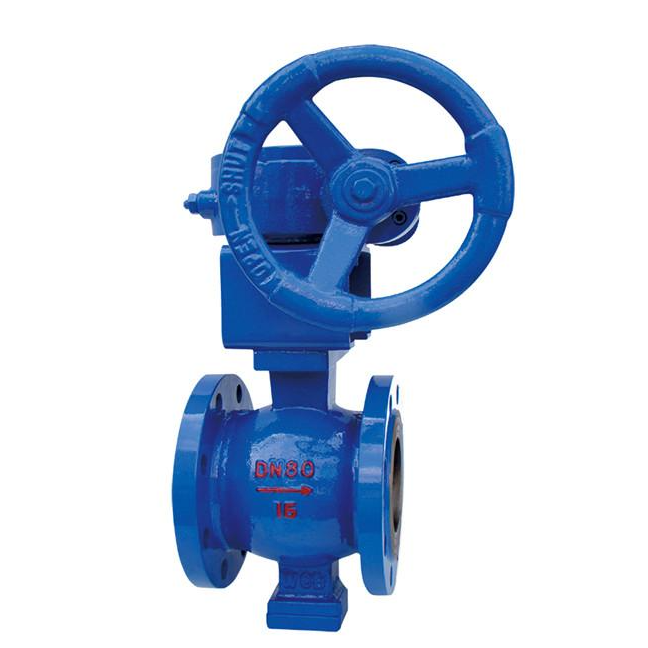

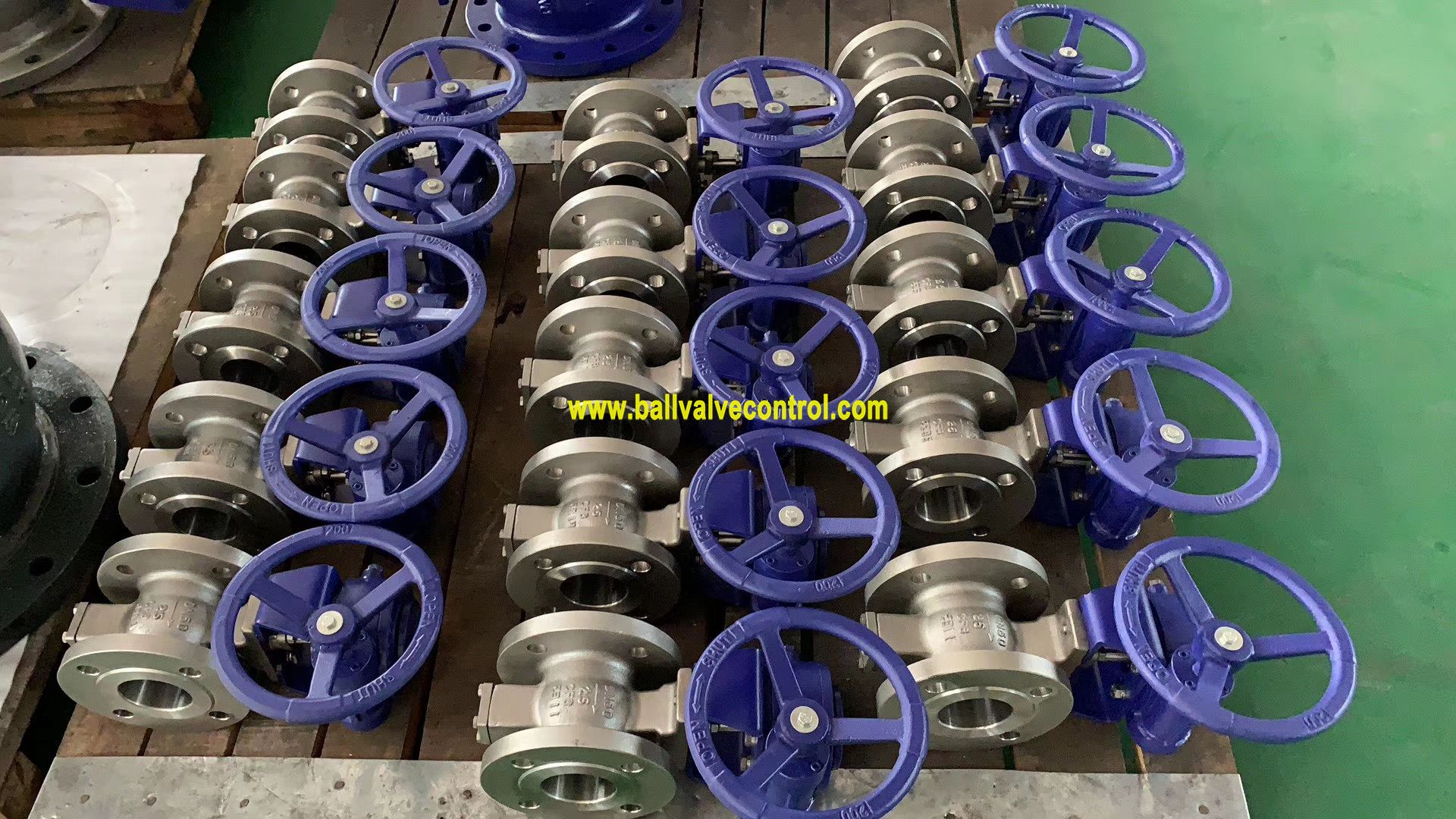

WCB WCC Worm gear segmented ball valve

  • Port size:1”~28”(DN25~DN700)
  • Pressure:PN10-PN40 CL150-CL300
  • Structure:Segmented V type ball
  • Medium:slurry, drainage, fiber and small particles,etc.
  • Temperature :-29~450℃
  • Body material:WCB,CF8,CF8M,etc.
  • Connection:Flange,Wafer
  • Feature:Pneumatic,electric,manual operation is optional

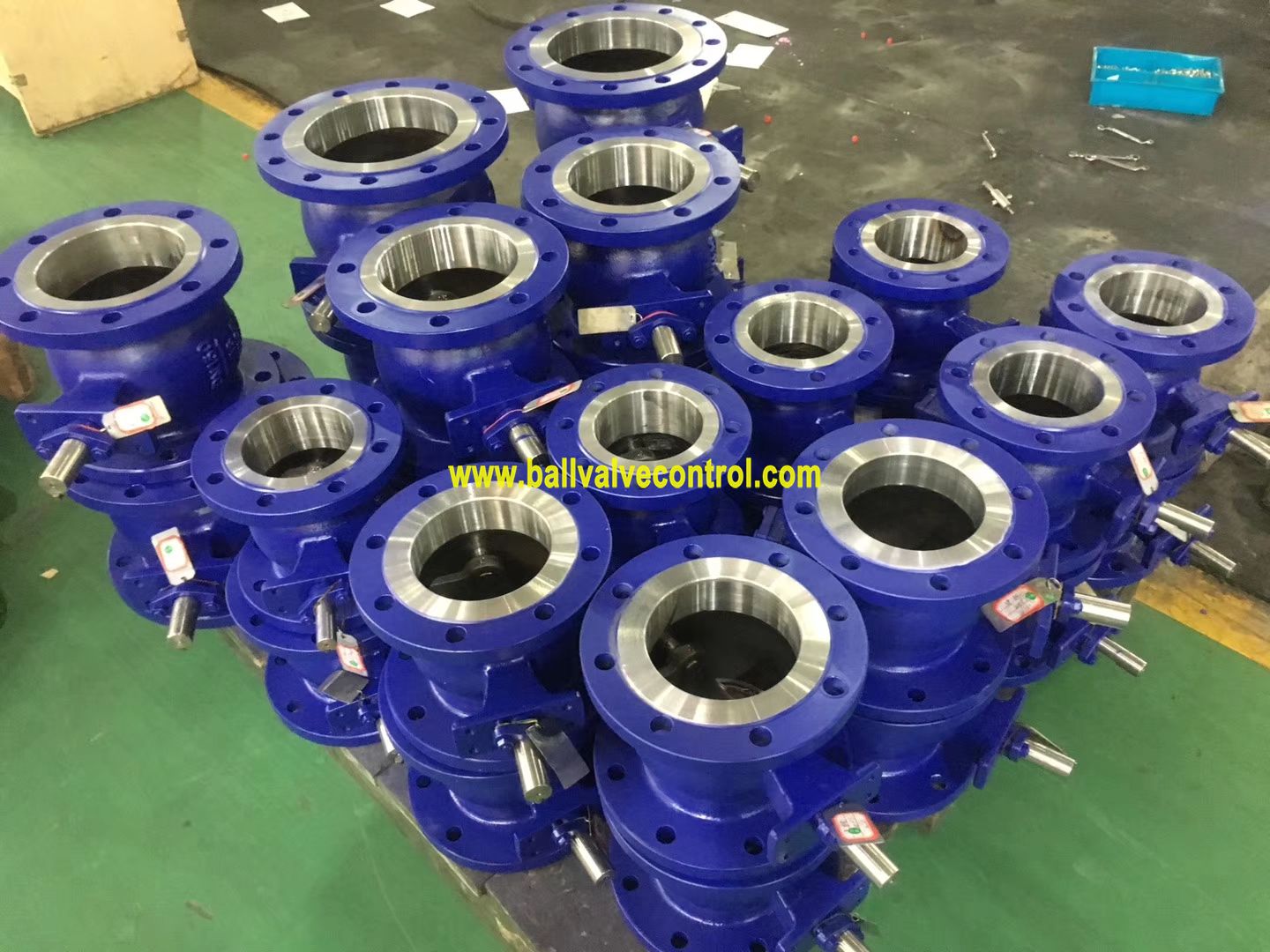

WCB WCC Worm gear segmented ball valve structure introduction:
WCB WCC Worm gear segmented ball valve has the V type gap in the valve plug which will do wedge-shaped sheared action when the WCB WCC Worm gear segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat.WCB WCC Worm gear segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
WCB WCC Worm gear segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, WCB WCC Worm gear segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.

Structure Segment ball
Nominal Diameter Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating ASME Class 150 ~ CLASS 300/ PN10-PN40
Connection Flange Type (RF、RTJ、FM)、Wafer type

WCB WCC Worm gear segmented ball valve design feature:

· Hard treated trim parts, which is grinded, polished, of high degree of finishing and wear resistance.
· The cavity is designed based on straight through and streamline type, which can prevent blocking up and improve the steady of action.
· Shearing action ball and the valve can clean itself, which is suitable for various kinds of gas and liquid and especially for the liquid of containing paper pulp, sewage and containing solid particle.

WCB WCC Worm gear segmented ball valve structure:
Segmented ball valve structure


WCB WCC Worm gear segmented ball valve Parts details list:
No Name Qty Material
1 Valve body 1 WCB CF8 CF8M
2 Segment ball 1 CF8+HCr CF8+HCr CF8M+HCr
3 Cylindrical pin 2 304 304 316
4 Seat 1 304+Hard Alloy 304+Hard Alloy 316
5 Spring 1 316 316 316
6 O ring 1 Fluororubber Fluororubber Fluororubber
7 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
8 Down stem 1 20Cr13 304 316
9 O Ring 1 Fluororubber Fluororubber Fluororubber
10 Back gland 1 WCB CF8 CF8M
11 Ring gasket 1 PTFE PTFE PTFE
12 Adjustable gasket 1 PTFE PTFE PTFE
13 Flat gasket 4 Q235 304 304
14 Bolt 2 25# 304 304
15 Double screw bolt 1 25# 304 304
16 Self lubricant bearing 1 304+PTFE 304+PTFE 316+PTFE
17 Flat key 1 20Cr13 304 316
18 Down packing 1 PTFE PTFE PTFE
19 Middle packing 1 set PTFE PTFE PTFE
20 Up packing 1 PTFE PTFE PTFE
21 Packing gland 1 WCB CF8 CF8M
22 Bolt 2 35# 304 304
23 Up stem 1 20Cr13 304 316

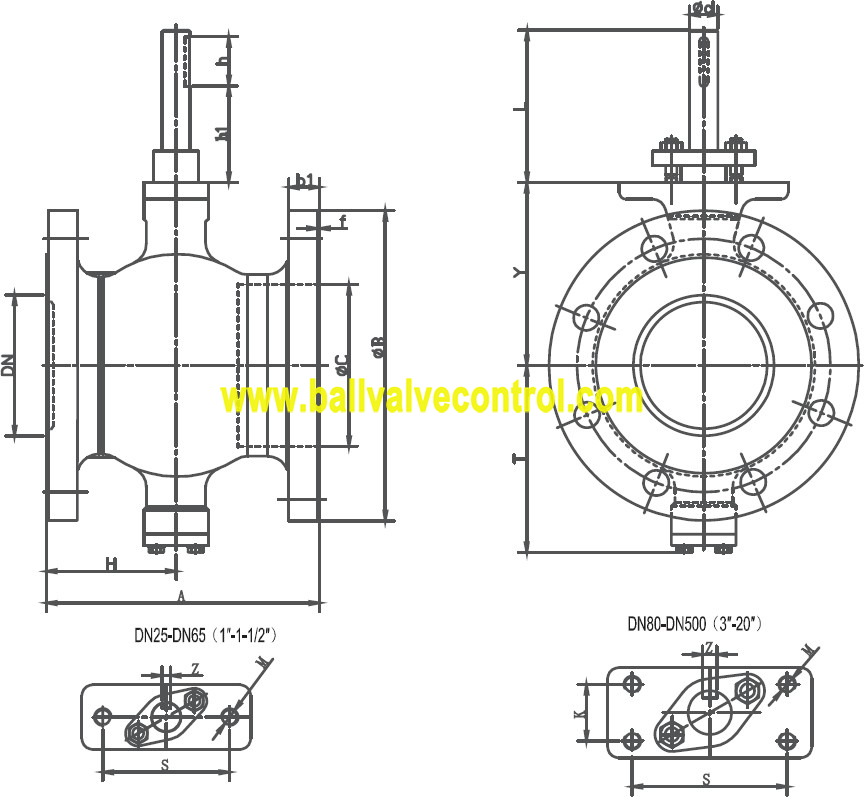

WCB WCC Worm gear segmented ball valve flange type dimension:
WCB WCC Worm gear segmented ball valve flange type


WCB WCC Worm gear segmented ball valve flange type dimension as below:                                                Unit: mm
DN A H B b1 f C T Y L L 0d h S K M Z Tor.
25 102 51 115 16 2 38 81 73 102 75 16 35 75 / 2-M10 5 32
32 102 51 140 18 2 45 86 78 100 75 16 35 75 / 2-M10 5 40
40 114 57 150 18 2 50 90 80 102 75 16 35 75 / 2-M10 5 76
50 124 60 165 20 2 62 93 90 104 75 16 35 75 / 2-M10 5 90
65 145 70 185 20 2 73 108 105 102 75 16 35 75 28 2-M10 5 100
80 165 75 200 20 2 90 123 118 110 75 20 35 90 28 4-M10 6 140
100 194 92 220 22 2 115 138 130 108 75 20 35 90 28 4-M10 6 150
125 194 97 250 22 2 134 148 145 110 80 25 40 90 40 4-M10 8 200
150 229 110 285 24 2 164 170 170 124 94 30 50 110 40 4-M12 8 300
200 243 120 340 24 2 206 200 201 124 94 30 50 110 40 4-M12 8 500
250 297 148 405 26 2 260 240 237 140 98 40 60 135 40 4-M16 12 800
300 338 190 460 28 2 316 286 282 140 98 40 60 135 64 4-M16 12 1400
350 400 221 520 30 2 372 330 337 170 125 50 60 140 80 4-M16 14 2000
400 400 220 580 32 2 420 367 372 212 172 60 80 170 90 4-M16 18 2900
450 520 290 640 40 2 470 422 432 240 172 70 90 190 90 4-M16 20 3400
500 600 320 715 44 2 516 490 498 250 180 80 100 190 / 4-M16 22 5000

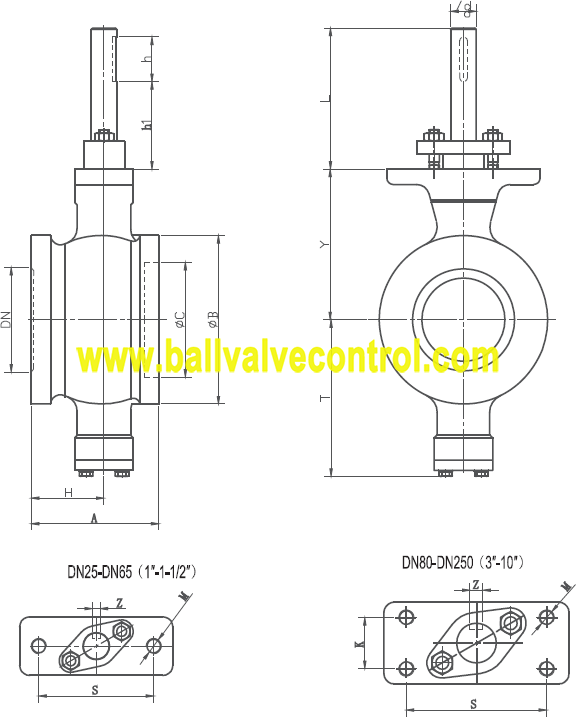

WCB WCC Worm gear segmented ball valve wafer type dimension:
WCB WCC Worm gear segmented ball valve wafer type
WCB WCC Worm gear segmented ball valve wafer type dimension as below:                                                Unit: mm
DN A B C T Y L T φ d h S K M Z Tor.
25 50 30 68 38 81 73 102 75 16 35 75 / 2-M10 5 32
32 60 35 76 45 86 78 100 75 16 35 75 / 2-M10 5 40
40 60 35 84 50 90 80 102 75 16 35 75 / 2-M10 5 76
50 75 43 100 62 93 90 104 75 16 35 75 / 2-M10 5 90
65 100 50 118 73 108 105 102 75 16 35 75 / 2-M10 5 100
80 100 57 132 90 123 118 110 75 20 35 90 28 4-M10 6 140
100 115 65 158 115 138 130 108 75 20 35 90 28 4-M10 6 150
125 129 78 184 134 148 145 110 80 25 40 90 28 4-M10 8 200
150 160 95 216 164 170 170 124 94 30 50 110 40 4-M12 8 300
200 200 120 268 206 200 201 124 94 30 50 110 40 4-M12 8 500
250 240 148 326 260 240 237 140 98 40 60 135 40 4-M16 12 800
