Ball valve manufacturer

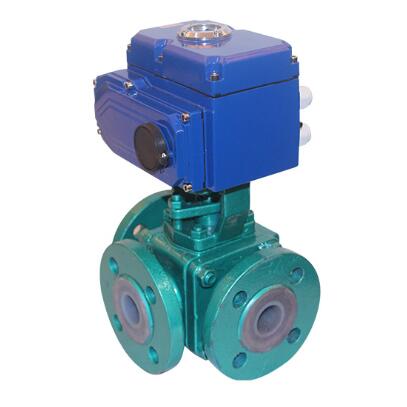

3 way PTFE PFA Lined motorized ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN16 CL150
  • Structure:3 way:T Port or L port
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:WCB,CF8,CF8M+FEP PTFE PFA lined
  • Connection:Flange
  • Feature:Different electric actuaror is optional
3 way PTFE PFA Lined motorized ball valve introduction
3 way PTFE PFA Lined motorized ball valve  is composed of electric actuator and 3 way PTFE PFA Lined ball valve with T port or L port structure according to the flow direction .The inner cavity and ball core of the 3 way PTFE PFA Lined motorized ball valve body are lined with anti-corrosion and anti-aging polyperfluorinated ethylebingene by high-pressure injection molding process, so it has anti-corrosion and sealing properties.3 way PTFE PFA Lined motorized ball valve is mainly used to adjust or cut off the strong corrosive medium such as acid and alkali in the production process.Electric actuator built-in servo system, without additional servo amplifier, input 4-20mA signal and 220VAC/380V power supply can be controlled operation.3 way PTFE PFA Lined motorized ball valve has the advantages of simple connection, compact structure, small size, light weight, small resistance, stable action, etc.

3 way PTFE PFA Lined motorized ball valve is widely used in various different types of industrial pipelines in the transport of liquid and gas (including steam), especially the use of severe corrosive medium, such as: hydrofluoric acid, chlorine gas, strong alkali, aqua aqua and other corrosive medium.

3 way PTFE PFA Lined motorized ball valve performance
-Ball Valve size: 1/2" ~ 12" (DN15-DN300)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: WCB CF8 CF8M CF3 CF3M+FEP PTFE PFA lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Electric Actuator Supply:AC220V,AC380V


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
