Ball valve manufacturer

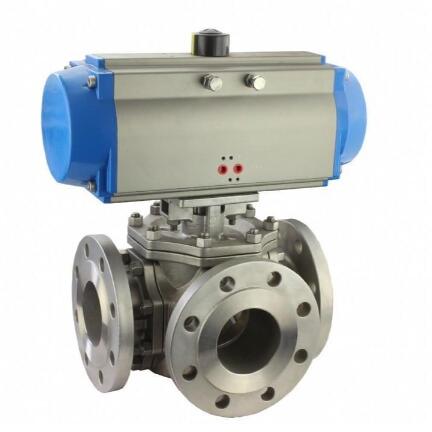

Pneumatic flange end three way ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Three way:T Port or L port
  • Medium:Water,steam,oil,etc.
  • Temperature :PTFE: -29°C~178°C, metal seal: -29°C~450°C
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flange
  • Feature:Confirm the flow direction before order
Pneumatic flange end three way ball valve introduction:
Pneumatic flange end three way ball valve is mainly composed of T or L three way ball valve and pneumatic actuator connected, Pneumatic flange end three way ball valve is mainly used in the direction of the pipeline intermediary, confluence and shunt.The Pneumatic flange end L-type three way ball valve is to switch or cut off the flow direction of two perpendicular channels of the medium, plays a distribution role, and the T-type three way ball valve not only to cut the flow direction of the medium, but also can make the three channels connected to each other or close any one of the channels, play the role of diversion, confluence.The Pneumatic flange end three way ball valve can be installed on its actuator valve positioner and other related accessories, can control the ball valve ball core operation, and then play the automatic control of the pipeline medium.

Pneumatic flange end three way ball valve features:
(1) Pneumatic flange end three way ball valve is good sealing effect, soft sealing PTFE elastic deformation can achieve no leakage seal,
(2) Pneumatic flange end three way ball valve is easy to install, which can be used as the flow inlet of the medium * with no leakage.
(3) Multi-purpose of one valve: Pneumatic flange end three way ball valve can be manufactured into L-shaped opening or T-shaped opening, which can meet different working conditions.
(4) Pneumatic flange end three way ball valve is rapid response, good liquidity, small opening and closing torque, long service life.
(5) Pneumatic flange end three way ball valve is wide range of application, which can meet the requirements of changing the flow direction of the medium in each pipeline system or achieving the diversion or confluence of the medium.

Pneumatic flange end three way ball valve Main technical parameters:
Nominal size: Flange type: DN15~300mm, thread type: 1/2"~12"
Nominal pressure: 1.6mpa, 2.5mpa, 4.0mpa, 6.4mpa
3 way ball valve connection: Flange type, internal thread
Structure: L-type three-way valve body, T-type three-way valve body
Spool type: O ball spool
3 way ball valve flow characteristics: fast opening characteristics
Spool material: stainless steel 304, stainless steel 316, stainless steel 316L, etc
Sealing materials: PTFE,PPL,metal sealing (hard alloy)
Body material: Carbon steel (WCB), stainless steel 304, stainless steel 316, stainless steel 316L, etc
Service temperature: PTFE: -29°C~178°C, metal seal: -29°C~450°C
3 way ball valve scope of use: water, gas, steam, gas, oil, corrosive medium, etc
Type of drive for pneumatic ball valve: compressed air (4~7bar) (with hand wheel)
Air source interface: G1/4, G1/8, G3/8, G1/2
Control mode of pneumatic ball valve: switching mode, regulating type (4-20mA analog signal)
Action form of Pneumatic flange end three way ball valve: double action (air opening and air closing), single action spring return (normally open, normally closed)
Ambient temperature for of Pneumatic flange end three way ball valve: -30°C~+70°C
Applicable medium: gas, water, oil, steam and corrosive medium (low temperature, normal temperature, high temperature)
Return signal: also known as limit switch, remote feedback switch signal (explosion-proof)
Electromagnet valve: double-acting two-position five-way, single-function two-position three-way (explosion-proof)
Triplet: it can stabilize the air source, filter and add lubricating oil to the cylinder
Handwheel mechanism: actualize means to open and close manually.
Pneumatic ball valve positioner: Input 4~20mA signal to realize valve adjustment function (YT-1000R)

Pneumatic flange end three way ball valve flow direction:
Pneumatic three way ball valve flow direction

L-shaped Pneumatic flange end three way ball valve can only connect or cut off two perpendicular orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time, only playing the role of distribution.
T-type pneumatic flange end three way ball valve can make three orthogonal pipe connected to each other or cut off any third channel, to achieve the function of two in and one out or one in and two out, play the role of diversion, confluent.

Pneumatic flange end three way ball valve Standard Specification:
(1) Design and manufacturing: GB/T12237-1989, API608
(2) Inspection and testing: GB/T12237-1992, API598
(3) Flanged connection: JB/T79--2-1994, ASME/ANSI 165
(4) Structure length: JD-2002

Pneumatic flange end three way ball valve actuator parameters:
Double-acting actuators: switching actions are driven by air source, ventilation on, ventilation off, and air source failure to maintain the current position.
Single-acting actuators: the switching action is only on or off driven by the air source, while the switching action is reversed by the spring.
Single-acting normally closed type: ventilation on, air break off, air source fault off.
Single acting normally open type: ventilation closed, air break open, air source fault open.
Cut off accessories: single solenoid valve, double solenoid valve, limit switch back signal
Regulating accessories: electric positioner, pneumatic positioner, electrical converter
Reply: also known as limit switch, remote feedback switch signal (explosion-proof)
Solenoid valve: two-position five-way, single-position three-way (explosion-proof)
Triplet: it can stabilize the air source, filter and add lubricating oil to the cylinder
Air source treatment accessories: air filter pressure reducing valve, air source treatment triplet
Manual mechanism: Turn handwheel mechanism, open valve and close valve manually

How to order pneumatic flange end three way ball valve:

1. For special requirements of pneumatic flange end three way ball valve , the following instructions shall be provided in the order contract:
A.Structure length;
B.Connection form;
C.Nominal diameter;
D.Product use medium, temperature, pressure range, etc.
E.Tests, inspection standards and other requirements.
2, Pneumatic flange end three way ball valve can be configured according to customer specific requirements of various driving devices.
