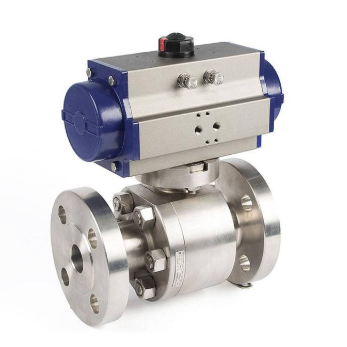

3PC Forged steel pneumatic ball valve

3PC Forged steel pneumatic ball valve introduction：
3PC Forged steel pneumatic ball valve is composed of forged steel ball valve and double or single acting pneumatic actuator,3PC Forged steel pneumatic ball valve in the pipeline is mainly used to cut off, distribution and change the direction of the flow of the medium,3PC Forged steel pneumatic ball valve only needs to be rotated 90 degrees of operation and very small torque can be closed tightly.Completely equal body cavity for the medium to provide little resistance, through the flow.

3PC Forged steel pneumatic ball valveis not only simple structure, good sealing performance, and within a certain range of nominal pass after small volume, light weight, less material consumption, installation size is small, and the drive torque is small, easy to operate, easy to realize the rapid opening and closing, easy operation and maintenance,3PC Forged steel pneumatic ball valve is suitable for water, solvents, acids and natural gas and other general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene.

3PC Forged steel pneumatic ball valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 42mpa CL150-CL2500
Suitable temperature:-29～150℃,-40～450℃
Connection mode: flange type, welding type
Valve body structure: O - type floating ball
Body material:304, 316, 316L, etc
Valve ball material:304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Pneumatic actuator 304 316 ball valve Suitable medium: steam, liquid water, gas, etc

3PC Forged steel pneumatic ball valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Positioner to realize proportional control. or Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


3PC Forged steel pneumatic ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
