Ball valve manufacturer

Metal seated jacketed ball valve

  • Port size:DN15x 25 To DN250 x 300
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Full or partial jacket design
  • Medium:Bitumen,asphalt,molten sulfur,liquid silphur,resin,polymer
  • Temperature :-20~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Metal seated for high temperature medium

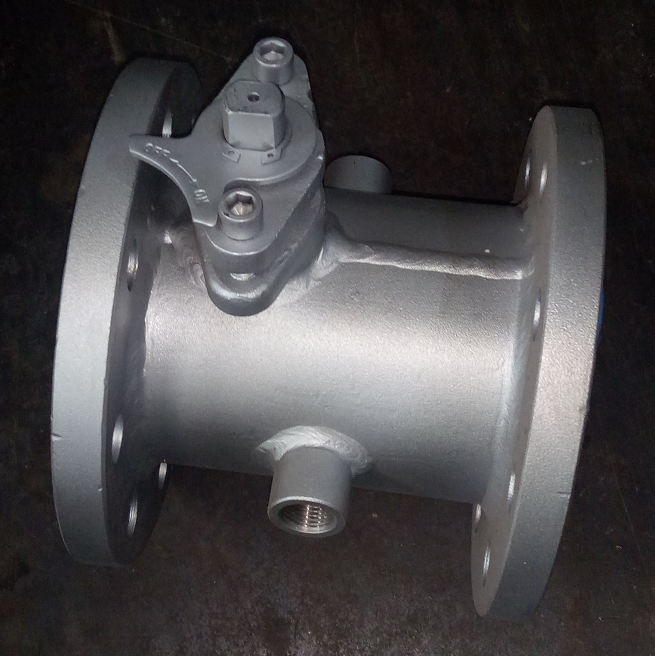

Metal seated jacketed ball valve introduction
Metal seated jacketed ball valve is used for bitumen,asphalt,molten sulfur,liquid silphur,resin,polymer,which is also called thermal insulation jacket ball valve, The jacket covers the body from one flange to the other flange. Thermal hot oil jacketed ball valve body is modified by adding oversize flanges. As example: 2" x 3" SMetal seated jacketed ball valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Metal seated jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen and liquid sulfur. In addition, the efficient flow of media is ensured through the elimination of pockets.Steam,hot oil can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the Jackets have been welded (Fabricated) to the body. Jacket Hydraulic & Air Test is carried out at 6 bar.

Metal seated jacketed ball valve is produced in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.
 PTFE soft seated steam heating jacket Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +450° C.Metal seated jacketed ball valve is also can be produced for high temperature medium.

Metal seated jacketed ball valve operation: jacketed ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size. We also supply steam jacketed Ball Valves with either Pneumatic or Electrical actuator operated for automation.

Metal seated jacketed ball valve specificatiion
Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"
Pressure level:PN10~PN100, CL150~CL600
Design standard: API608, ASME B16.34
Connection mode: RF, RTJ, BW
Structure: Single Piece or two pieces Design
Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve
Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc
Operation:Manual,pneumatic,electric actuator
Applicable medium: water, steam, oil, corrosive medium, etc

Metal seated jacketed ball valve standard
Design and manufacturing standards: GB/T12224, ASME B 16.34
Structural length standard: GB/T 12221-2005, ASME B 16.10
Connection flange standard: JB/T 79, GB/T 9113, ASME B 16.5
Pressure and temperature class: GB/T 12224-2005
Test standard: GB/T 13927-2008, JB/T9092, API 598

Metal seated jacketed ball valve working principle
Metal seated jacketed ball valve is installed on the basis of the ball valve metal jacket, used to inject steam or other heat preservation, cold media, to ensure that the medium in the valve can work normally.Thermal insulation steam jacketed ball valve according to the different structure of the ball valve, there are integralSteam heating jacket ball valve, two-piece jacketed ball valve, sandwicd-type jacketed ball valve and other structural forms, Metal seated jacketed ball valve has a good heat preservation and cooling characteristics, with the valve's pain diameter and pipe diameter consistent, Thermal hot oil jacketed ball valve also can effectively reduce the heat loss of medium in the pipeline.It is mainly used in petroleum, chemical industry, metallurgy, pharmaceutical, food and other systems to transport high viscosity medium that can solidify at room temperature.

Metal seated jacketed ball valve has good thermal insulation, cooling characteristics, in addition to reducing the diameter of the jacketed ball valve, the valve size and pipe diameter to, the medium flow in a straight line, small resistance, can effectively reduce the heat loss of the medium in the pipeline, therefore, easy to solidify, high viscosity of the liquid medium has excellent performance.Except the two-piece ball valve, the valve body adopts the integral jacket design, which can keep heat and keep cold more evenly.Weld the outer side of the jacket and body to the jacket joint with a maximum allowable steam or cold water pressure of 1MPa.
