Ball valve manufacturer

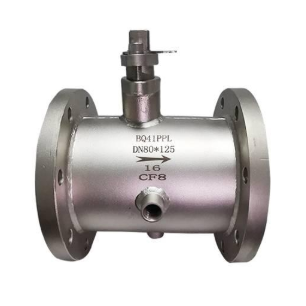

2 way bitumen jacketed ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Full jacketed design
  • Medium:Bitumen
  • Temperature :-29~280℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:For bitumen,accpet customize
Shanghai huixuan valve is 2 way bitumen jacketed ball valve manufacturer and factory for bitumen backeted balve, jacketed balve for bitumen, bitumen balve with jacketed,hot oil jacketed bitumen valve, dowtherm oil jacketed bitumen valve, steam jacketed bitumen valve, thermal oil jacketed bitumen valve, jacketed bitumen valves.

2 way bitumen jacketed ball valve specification

Body Material – ASTM A 216 GR. WCB
Ball– Austenitic Stainless Steel 316 (ASTM A 276 T-316)
Jacket Material – ASTM A 106 GR. B (Carbon Steel, Seamless, Schedule 40 Pipe)
Ball Seat, Body Seat and Gland Packing Material – PTFE (Polytetrafluoroethylene)
Valve Operation – Manual Hand Lever Operated
End Connection – Flanged End RF, ANSI B 16.5, Class 150 standard drilled
Pressure Rating of Jacketed Ball Valve – Class 150
Jacket Connection – Half Coupling, 1/2″ Size NPT Threaded
No. of Jacket Connection – One Inlet + One Outlet = Total 02 Port Connection
Valve Size – DN100 x DN150 (4″ x 6″)

Bitumen Jacketed Ball Valve also suitable for application of Coal Tar, Pitch, Asphalt and Molten Naphthalene service.

Bitumen Grades type

  • Cutback Bitumen
  • Bitumen Emulsion
  • Modified Bitumen
  • Bituminous Primers
  • Penetration Grade Bitumen
  • Oxidized Bitumen Grades
  • Polymer Modified Bitumen
  • Fluxed Bitumen
  • Paving Grade Bitumen
  • Industrial Grade Bitumen
  • Crumb Rubber Modified Bitumen
  • Asphalt
