Full jacketed ball valve

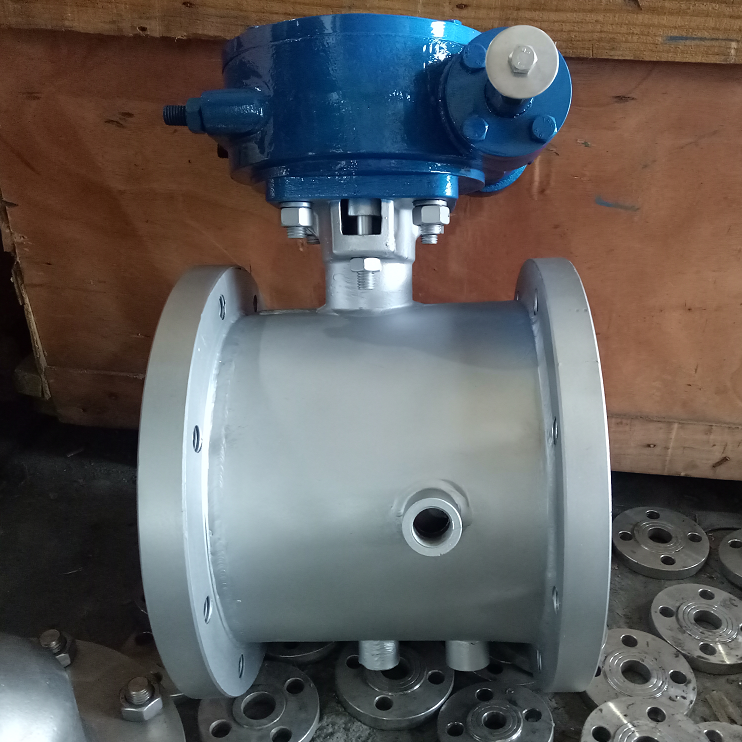

Full jacketed ball valve introduction
Full jacketed ball valve is produced in carbon steel and different types of stainless steel materials. Other special materials are available upon special request. PTFE soft seated jacketed ball valve gives Zero Leakage, tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. metal seated steam jacketed ball valve is also can be produced for high temperature medium.

The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. Full jacketed ball valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen and liquid sulfur. In addition, the efficient flow of media is ensured through the elimination of pockets.
Steam,hot oil can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the Jackets have been welded (Fabricated) to the body. Jacket Hydraulic & Air Test is carried out at 6 bar.

Full Jacketed ball valve operation: thermal insulation jacket ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size. We also supply steam jacketed Ball Valves with either Pneumatic or Electrical actuator operated for automation.

Full jacketed ball valve specificatiion
Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"
Pressure level:PN10~PN100, CL150~CL600
Design standard: API608, ASME B16.34
Connection mode: RF, RTJ, BW
Structure: Single Piece or two pieces Design
Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve
Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc
Operation:Manual,pneumatic,electric actuator
Applicable medium: water, steam, oil, corrosive medium, etc

Full jacketed ball valve specificatiion

One Piece Cast Steel Body

Floating Ball, Full Bore or Reduced Bore

Fire Safe Design

Anti-Static Device

Blow-Out Proof Stem

Drain Plug

Locking Device

Self-Lubricated, Maintenance Free Bearings

Underneath stem packing prevents coagulable fluids from coagulating at the stem rotation position.

Self-Tightening threaded seats, easy demounting and maintaining

Jacket welded from shaped steel pipe, with high strength low weight

Aligned flow passage of valve and pipeline, optimum flow rate

Sufficient full flow jacket space for thermal/cold media accommodating, assures reliable insulating for pipe fluids.

Flange size is bigger than that of valve nominal size.

Insulating media port ends can be flanged.
