Ball valve manufacturer

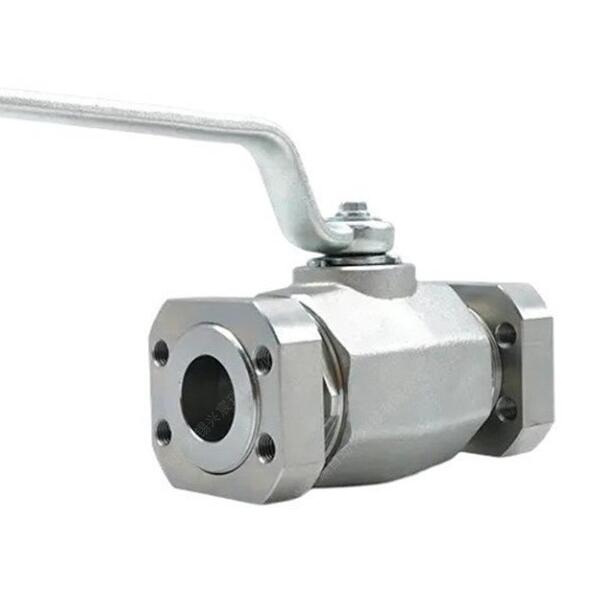

ISO 6162-1 3000 PSI SAE Flange Ball Valve

Port size：DN15-DN100
Pressure：3000 PSI
Structure：Square or round body
Medium：hydraulic oil or others
Temperature :-20～80℃
Body material：Carbon Steel, Stainless Steel or others
Connection：Flange or others
Feature：Customized order is acceptable

Product Description

ISO 6162-1 3000 PSI SAE Flange Ball Valve manufacturer, factory and supplier. ISO 6162-1 3000 PSI SAE Flange Ball Valve is a two way ball valve with with a round or hexagon body design and with SAE flange. ISO 6162-1 3000 PSI SAE Flange Ball Valve is used to control, restrict or shut off liquids or gases on the system line. It is also a quarter-turn type ball valve, that contains a floating ball.

ISO 6162-1 3000 PSI SAE Flange Ball Valve is suitable for general hydraulic oil and gases application. A special feature of this type ball valve is it was made to suit SAE 3000# (210 bar) (ISO 6162-1) and SAE 6000#(420 bar) (ISO 6162-2). ISO 6162-2 6000 PSI SAE flange end ball valves are used for hydraulic oil and gases application.

The available materials for ISO 6162-1 3000 PSI SAE Flange Ball Valve are steel and stainless steel, with an available rating of 210 Bars and 420 Bars. SAE flange are required to connect to the SAE adapter that placed on both ends of the SAE flange ball valves.

ISO 6162-1 3000 PSI SAE Flange Ball Valveis important to know the type of applications, and working temperature for the ball valves, in order to identify the most suitable material for the ball valves parts, such as ball seat, and seal for stem and adaptor. For the Steel material, the temperature range from -20˚C to 100˚C. while the temperature for Stainless Steel material, range from -30˚C to 100˚C.

Product name: ISO 6162-1 3000 PSI SAE Flange Ball Valve
Product Model: MKH with SAE Flange
Drive mode: Manual
connection mode: Flanged end
Structure: Straight through
seal structure: soft se
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

ISO 6162-1 3000 PSI SAE Flange Ball Valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: 3000 PSI
working pressure: 3000 PSI (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
