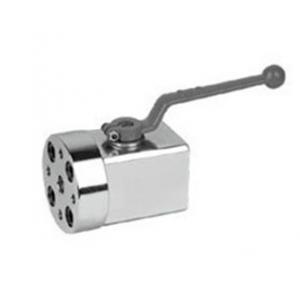

CJZQ Marine hydraulic ball valve

CJZQ Marine hydraulic ball valve introduction
CJZQ Marine hydraulic ball valve is suitable for opening and closing of various pipelines in marine hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, the marine hydraulic ball valve to complete the full open or full close action,CJZQ Marine hydraulic ball valve is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the hydraulic ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.CJZQ Marine hydraulic ball valve is applicable medium: hydraulic oil, water - glycol, other mixed liquids.

CJZQ Marine hydraulic ball valveTechnical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: L-external thread connection type, F-flange connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

CJZQ Marine hydraulic ball valve type introduction
Code: C--Marine
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type:  L--Male thread
                             F--Flange

CJZQ Marine hydraulic ball valveoutline dimension (flange end)

Type	D1	D2	D3	L1	L2	L3	L4	L5	H	S
CJZQ-H10F	Ф9	Ф20	M27×1.5	100	62	14	2	105	86	46
CJZQ-H15F	Ф14	Ф22	M30×1.5	105	64	16	2	147	99	52
CJZQ-H20F	Ф18	Ф28	M36×2	121	74	18	2.5	185	108	60
CJZQ-H25F	Ф23	Ф35	M42×2	135	80	20	2.5	185	118.5	70
CJZQ-H32F	Ф30	Ф40	M52×2	160	96	22	2.5	240	137	84
CJZQ-H40F	Ф38	Ф45	M60×2	180	106	24	2.5	240	148	96
CJZQ-H50F	Ф48	Ф55	M72×2	205	105	26	2.5	240	172	120
