Ball valve manufacturer

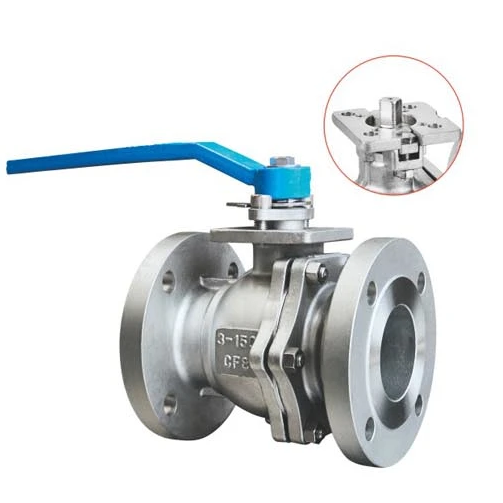

Q41F Q41H Q41Y Floating ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Model:Q41F Q41H Q41Y
Q41F Q41H Q41Y Floating ball valve introduction:
Q41F Q41H Q41Y Floating ball valve is lever type ball valve,Q41F is soft seat ball valve,Q41H is metal seat ball valve,Q41Y is stellite seat ball valve.Q41F Q41H Q41Y Floating ball valve is full bore bore,floating ball design, Q41F Q41H Q41Y Floating ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of Q41F Q41H Q41Y Floating ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

Q41F Q41H Q41Y Floating ball valve Specification:
Product Name Q41F Q41H Q41Y Floating ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -20~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Q41F Q41H Q41Y Floating ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE/Delvon/PEEK seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
