Ball valve manufacturer

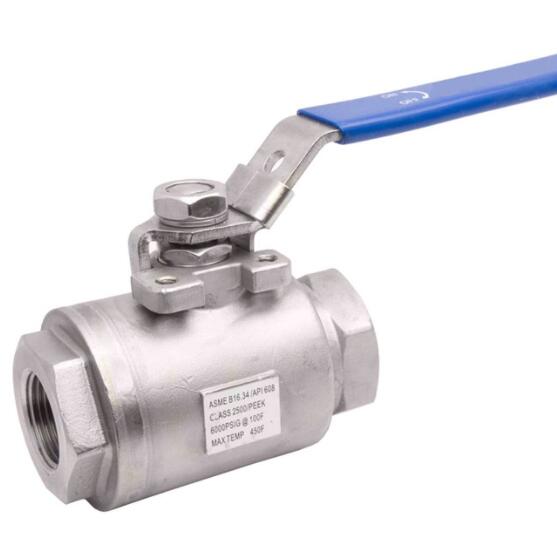

High pressure 6000 PSI WOG ball valve

  • Port size:1/2″ to 4″,DN15-DN100
  • Pressure:6000 PSI, 6000 WOG
  • Structure:2 Piece or 3 piece
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃
  • Body material:Carbon steel,stainless steel,etc.
  • Connection:Threaded end or welded end or others
  • Feature:For high pressure working condition
High pressure 6000 PSI WOG ball valve manufacturer, factory and supplier. High pressure 6000 PSI WOG ball valve can be 2 piece or 3 piece body design and threaded end or welded end according to client's need. High pressure 6000 PSI WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle, ISO 5211 mounting pad or lever, electric or pneumatic actuator.High pressure 6000 PSI WOG ball valve is suitable for 3000 psi (at ambient temperature) water, oil, or gas and steam.

High pressure 6000 PSI WOG ball valve specification
Type: Ball Valve, 2-Piece or 3-Piece, Full Port
Size: 3/8"-4''
Rating: 6000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles

ISO 5211 mounting pad or lever, electric or pneumatic actuator.
