Ball valve manufacturer

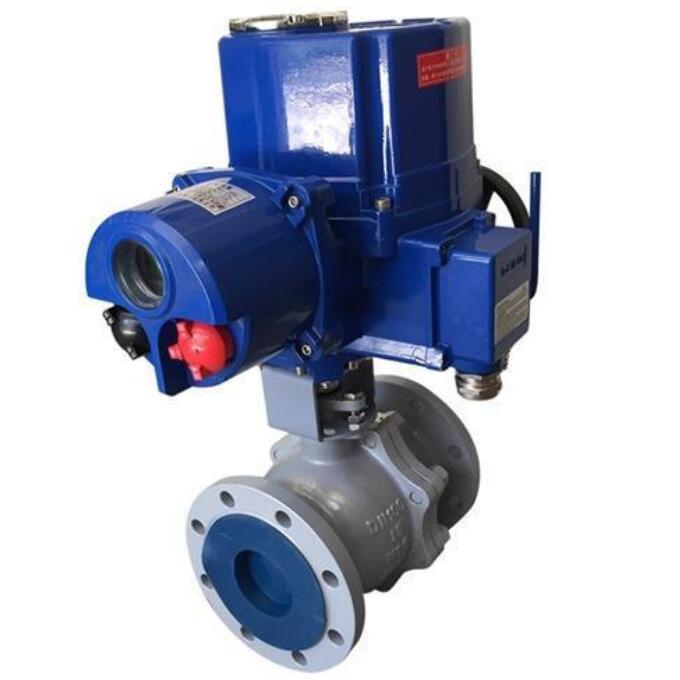

1 inch DN25 Electric motorized ball valve

  • Port size:1" (DN25)
  • Pressure:PN16 ~ 420,150LB ~ 2500LB
  • Structure:2PCS or 3 PCS
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Carbon Steel, Stainless Steel,forged steel
  • Connection:Flanged,welded,threaded.
  • Feature:Different actuator is for option.
China electric motorized ball valve manufacturer,facrory and supplier,1 inch DN25 Electric motorized ball valve AC220V AC380V is composed of floating ball valve and electric actuator.1 inch DN25 Electric motorized ball valve only need to rotate 90° drived by electric actuator can be fully closed and fully open.1 inch DN25 Electric motorized ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

1 inch DN25 Electric motorized ball valve Range:
-Ball valve size: 1" (DN25)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

1 inch DN25 Electric motorized ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V
Nominal diameter DN15mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.

1 inch DN25 Electric motorized ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

1 inch DN25 Electric motorized ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)
