Ball valve manufacturer

Top entry eccentric half ball valve

  • Port size:2"~24" (DN50~DN600)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Trunnion mounted ball,top entry
  • Medium:aluminum, fiber, micro solid particles, pulp, coal ash and other media
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Top entry for easy maintenance

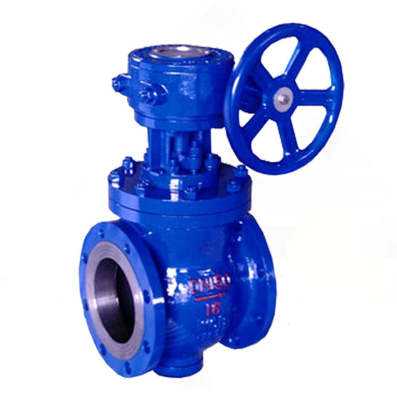

Top entry eccentric half ball valve introduction
Top entry eccentric half ball valve internal parts from the valve upper installation and disassembly of the ball valve, the advantage is that during maintenance, no need to remove from the pipeline, Top entry eccentric half ball valve can be replaced and repaired easily.Top entry eccentric half ball valve adopts eccentric body, eccentric ball and seat, the stem rotates in the common trajectory automatic centering, the closing process more and more tight, completely achieve a good sealing purpose.Top entry eccentric half ball valve ball and seat are completely separated, eliminating the wear of the sealing ring and overcoming the problem of the traditional ball seat and ball sealing surface wear all the time. The non-metallic elastic material is embedded in the metal seat, and the metal surface of the seat is well protected.Top entry eccentric half ball valve is especially suitable for steel industry, aluminum, fiber, micro solid particles, pulp, coal ash, LPG and other media.

Top entry eccentric half ball valve specification
Ball valve name: eccentric half ball valve
Ball valve models :PQ340F, PQ340H
Diameter range :DN50-DN600.
Pressure range: PN10-PN100,150LB-600LB.
Temperature range :-20℃-500℃.
Transmission mode: manual, worm gear transmission, pneumatic, electric.
Body material: cast steel, stainless steel
Top entry eccentric half ball valve Connection: Flange.

Top entry eccentric half ball valve standard
1. Design and manufacture: GB/T12237-1989;AP1608.
2. Inspection and testing: GB/T13927-1992;AP1598.
3. Flange connection: JB/T79.1~2-1994;ASME/ANSIB16.10

Top entry eccentric half ball valve structure feature
1. Open and close without friction.
    This function completely solves the problem of traditional valve sealing due to friction between sealing surfaces.
2. Top entry structure.
    Top entry eccentric half ball valve installed on the pipeline can be directly inspected and maintained online, which can effectively reduce device shutdown and cost.
3. Single seat design.
    The problem of abnormal pressure boost in the medium of the Side entry eccentric half ball valve affecting the safety of operation is eliminated.
4. Low torque design.
   Specially designed stem can be opened and closed with a small hand handle.
5. Wedge sealing structure.
   Top entry eccentric half ball valve is provided by the stem of the mechanical force, the ball wedge pressure on the seat and sealing, so that the valve sealing is not affected by the pipeline differential pressure changes, sealing performance in various working conditions are reliable guarantee.
6. Self-cleaning structure of sealing surface.
    When the ball leans away from the seat, the fluid in the pipeline passes through the ball sealing surface in a 360° uniform way, which not only eliminates the local flushing of high-speed fluid on the seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.
