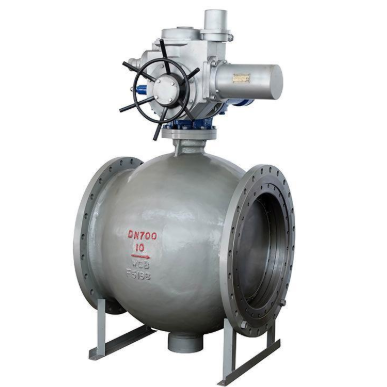

Electric big size half ball valve

  • Port size:DN40-DN800
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Eccentric half ball,side entry
  • Medium:fiber, micro solid particles, pulp, coal ash and other media
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Different electric actuaror is optional
Electric big size half ball valve introduction
Electric big size half ball valve composed of side entry half ball valve and electric actuator, the internal structure is one piece, the internal parts from the side of the installation and disassembly of a valve.Electric big size half ball valve adopts eccentric body, eccentric ball and seat, the stem rotates in the common trajectory automatic centering, the closing process more and more tight, completely achieve a good sealing purpose.Electric big size half ball valve ball and seat are completely separated, eliminating the wear of the sealing ring and overcoming the problem of the traditional ball seat and ball sealing surface wear all the time. The non-metallic elastic material is embedded in the metal seat, and the metal surface of the seat is well protected.Electric big size half ball valve is especially suitable for steel industry, aluminum, fiber, micro solid particles, pulp, coal ash, LPG and other media.

Electric big size half ball valve specification
Ball valve name: pneumatic eccentric half ball valve
Ball valve models :PQ340F, PQ340H
Diameter range :DN40-DN800.
Pressure range: PN10-PN100,150LB-600LB.
Temperature range :-20℃-500℃.
Transmission mode: manual, worm gear transmission, pneumatic, electric.
Body material: cast steel, stainless steel
Side entry eccentric half ball valve Connection: Flange.

Electric big size half ball valve standard
1. Design and manufacture: GB/T12237-1989;AP1608.
2. Inspection and testing: GB/T13927-1992;AP1598.
3. Flange connection: JB/T79.1~2-1994;ASME/ANSIB16.10
Electric big size half ball valve structure feature
1. Open and close without friction.
    This function completely solves the problem of traditional valve sealing due to friction between sealing surfaces.
2. Top entry structure.
    The Side entry eccentric half ball valve installed on the pipeline can be directly inspected and maintained online, which can effectively reduce device shutdown and cost.
3. Single seat design.
    The problem of abnormal pressure boost in the medium of the Side entry eccentric half ball valve affecting the safety of operation is eliminated.
4. Low torque design.
   Specially designed stem can be opened and closed with a small hand handle.
5. Wedge sealing structure.
   Side entry eccentric half ball valve is provided by the stem of the mechanical force, the ball wedge pressure on the seat and sealing, so that the valve sealing is not affected by the pipeline differential pressure changes, sealing performance in various working conditions are reliable guarantee.
6. Self-cleaning structure of sealing surface.
    When the ball leans away from the seat, the fluid in the pipeline passes through the ball sealing surface in a 360° uniform way, which not only eliminates the local flushing of high-speed fluid on the seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.

Electric big size half ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter DN40mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.
Electric big size half ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Our product range:
Shanghai Huixuan is eccentric half ball valve factory, China eccentric half ball valve manufacturer mainly produce pneumatic eccentric half ball valve,electric eccentric half ball valve,eccentric half cast steel ball valve,eccentric half  stainless steel ball valve,side entry eccentric half ball valve,top entry eccentric half ball valve and other eccentric half ball valves.
