Ball valve manufacturer

Penuamtic eccentric half ball valve

  • Port size:DN40-DN500
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Eccentric half ball,side or top entry
  • Medium:Aluminum, fiber, micro solid particles, pulp, coal ash and other media
  • Temperature :-20~500℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Side entry or top entry is optional

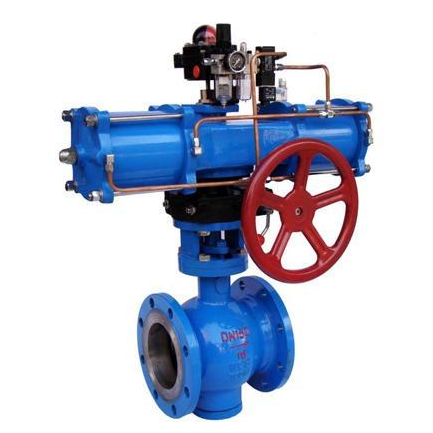

Pneumatic eccentric half ball valve introduction
Penuamtic eccentric half ball valve is composed of semi ball valve and pneumatic actuator, the internal structure is one piece, the internal parts from the side of the installation and disassembly of a valve.Penuamtic eccentric half ball valve adopts eccentric body, eccentric ball and seat, the stem rotates in the common trajectory automatic centering, the closing process more and more tight, completely achieve a good sealing purpose.Penuamtic eccentric half ball valve ball and seat are completely separated, eliminating the wear of the sealing ring and overcoming the problem of the traditional ball seat and ball sealing surface wear all the time. The non-metallic elastic material is embedded in the metal seat, and the metal surface of the seat is well protected.Penuamtic eccentric half ball valve is especially suitable for steel industry, aluminum, fiber, micro solid particles, pulp, coal ash, LPG and other media.

Pneumatic eccentric half ball valve specification
Ball valve name: pneumatic eccentric half ball valve
Ball valve models :PQ340F, PQ340H
Diameter range :DN40-DN500.
Pressure range: PN10-PN100,150LB-600LB.
Temperature range :-20℃-500℃.
Transmission mode: manual, worm gear transmission, pneumatic, electric.
Body material: cast steel, stainless steel
Side entry eccentric half ball valve Connection: Flange.

Pneumatic eccentric half ball valve standard
1. Design and manufacture: GB/T12237-1989;AP1608.
2. Inspection and testing: GB/T13927-1992;AP1598.
3. Flange connection: JB/T79.1~2-1994;ASME/ANSIB16.10
Pneumatic eccentric half ball valve structure feature
1. Open and close without friction.
    This function completely solves the problem of traditional valve sealing due to friction between sealing surfaces.
2. Top entry structure.
    The Side entry eccentric half ball valve installed on the pipeline can be directly inspected and maintained online, which can effectively reduce device shutdown and cost.
3. Single seat design.
    The problem of abnormal pressure boost in the medium of the Side entry eccentric half ball valve affecting the safety of operation is eliminated.
4. Low torque design.
   Specially designed stem can be opened and closed with a small hand handle.
5. Wedge sealing structure.
   Side entry eccentric half ball valve is provided by the stem of the mechanical force, the ball wedge pressure on the seat and sealing, so that the valve sealing is not affected by the pipeline differential pressure changes, sealing performance in various working conditions are reliable guarantee.
6. Self-cleaning structure of sealing surface.
    When the ball leans away from the seat, the fluid in the pipeline passes through the ball sealing surface in a 360° uniform way, which not only eliminates the local flushing of high-speed fluid on the seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.

Pneumatic eccentric half ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time
Penuamtic eccentric half ball valve adopts a new series of pneumatic actuators, with double action type and single action type (spring return), pinion and rack drive, safe and reliable;Large diameter Penuamtic eccentric half ball valve using series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double action and single action.

Pneumatic eccentric half ball valve  accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer

Our product range:
Shanghai Huixuan is eccentric half ball valve factory, China eccentric half ball valve manufacturer mainly produce pneumatic eccentric half ball valve,electric eccentric half ball valve,eccentric half cast steel ball valve,eccentric half  stainless steel ball valve,side entry eccentric half ball valve,top entry eccentric half ball valve and other eccentric half ball valves.
