Ball valve manufacturer

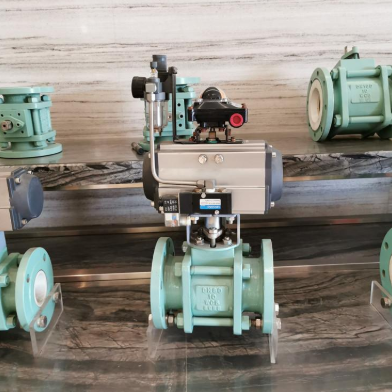

Ceramic lined ball valve factory and supplier

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN16 CL150
  • Structure:V port ball or O port ball
  • Medium:Particles,dust,fiber and others
  • Temperature :-20 ~ 300℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange
  • Feature:Pneumatic,electric,manual operation is optional
China Ceramic lined ball valve manufacturer,factory and supplier for pneumatic ceramic lined ball valve,electric ceramic lined ball valve, manual ceramic lined ball valve,full port ceramic lined ball valve,V port ceramic lined ball valve with carbon steel and stainless steel for different industry.

Ceramic lined ball valve is WCB or CF8 CF8M body full lined ceramic material,Pneumatic actuator ceramic lined ball valve is made of double acting or single acting pneumatic actuator and ceramic lined ball valve for on-off or reguating function to realize automation control,Electric actuator ceramic lined ball valve is made of on off or regulating type electric actuator.Ceramic ball valve has corrosion resistance, high temperature resistance, wear resistance and erosion resistance. Ceramic ball valve is used in conveying system of acid, alkali and salt gas, liquid, high temperature steam and mud in petrochemical, metallurgical, papermaking, power station and oil refining industries.Ceramic lined ball valve has the advantages of high economy and long service life.we can design ceramic ball valve according to user's requirement. Ceramic lined ball valve is suitable for acid, alkali, salt liquid, gas medium environment, hard sealing ball valve is suitable for with particle, fiber medium environment.

Ceramic lined ball valve technical parameters
Nominal size of ball valve: DN15 ~ DN300 (1/2"~ 12")
Pressure grade: PN10 ~ PN40 ANSI 150 ~ 300LB (lb)
Body material: Carbon steel WCB, A105 ,Stainless steel 304, 316, 304L, 316L
Ball valve inner material: structural ceramics
Connection: Flange connection
Drive mode: pneumatic(double acting or single acting)
Accessories:Positioner,solenoid valve,limit switch, air regulator.
Air supply:4-6 bar
Test pressure: strength test 1.5 times nominal pressure
Seal test 1.1 times nominal pressure
Ash test 1 times the nominal pressure
Ceramic ball valve service temperature: -20 ~ 300℃

Ceramic lined ball valve performance characteristics
1. The parts in contact with the medium are structural ceramic materials with high chemical stability and hardness.Therefore, the Pneumatic actuator ceramic ball valve has abrasion resistance, corrosion resistance, erosion resistance performance, and good insulation, small thermal expansion.
2. The ball of Ceramic ball valve adopts grinding equipment and process, ball roundness is high, and the seat after grinding, using Zr02 ceramic self-smoothness, can obtain good sealing performance.
3, Changed the metal hard seal ball valve leakage, torque, sealing surface is not corrosion resistant shortcomings.
4. Good wear resistance of ceramics, so that the Pneumatic actuator ceramic ball valve can be used long.
5. Ceramic lined ball valve is for high hardness of the particle medium, or soft particles but also corrosive medium.
