Ball valve manufacturer

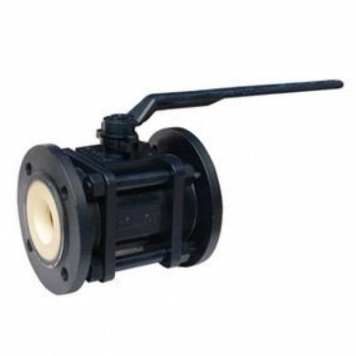

Abrasion resistant ceramic ball valve

  • Port size:DN50~300, NPS 2〞~ 12〞
  • Pressure:PN16 ~ 40 CLASS 150/300LB
  • Structure:Full ceramic lined
  • Medium:Powder,partical,ash,slag or others
  • Temperature :-20~300℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Manual,pneumatic,electric actuator is optional
Abrasion resistant ceramic ball valve introduction
Abrasion resistant ceramic ball valve is 3 pieces design with WCB or stainless steel body full ceramic lined,Abrasion resistant ceramic ball valve has corrosion resistance, high temperature resistance, wear resistance and erosion resistance.Abrasion resistant ceramic ball valve is used in conveying system of acid, alkali and salt gas, liquid, high temperature steam and mud in petrochemical, metallurgical, papermaking, power station and oil refining industries.Abrasion resistant ceramic ball valve is a strong corrosion of titanium valves, monel valve replacement products.Abrasion resistant ceramic ball valve has the advantages of high economy and long use.The driving mode is manual, pneumatic, pneumatic - spring reset, electric, etc.And can design ceramic ball valve according to user's requirement.Abrasion resistant ceramic ball valve is suitable for acid, alkali, salt liquid, gas medium environment, hard sealing ball valve is suitable for with particle, fiber medium environment.

Abrasion resistant ceramic ball valvetechnical parameters
Nominal size of ball valve: DN50 ~ DN300 (2 "~ 12")
Pressure grade: PN10 ~ PN40,ANSI 150 ~ 300LB (lb)
Body material: Carbon steel WCB, A105
Stainless steel 304, 316, 304L, 316L
Ball valve inner material: structural ceramics
Connection: Flange connection
Drive mode: manual,pneumatic, electric actuator
Test pressure: strength test 1.5 times nominal pressure
Seal test 1.1 times nominal pressure
Ash test 1 times the nominal pressure
Ceramic ball valve service temperature: -20 ~ 300℃

Abrasion resistant ceramic ball valve Application
Abrasion resistant ceramic ball valve is used  for thermal power plants, steel, petroleum, chemical, paper, biological engineering, and other industries.Abrasion resistant ceramic ball valve is suitable for boiler steam, lime slurry, seawater transportation containing particles, high hardness particles, soft particles with corrosive media, powder, flue gas desulfurization, ash, slag discharge, water treatment.Change the material according to the purpose, Abrasion resistant ceramic ball valve can be used in different temperature and medium.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
