Ball valve manufacturer

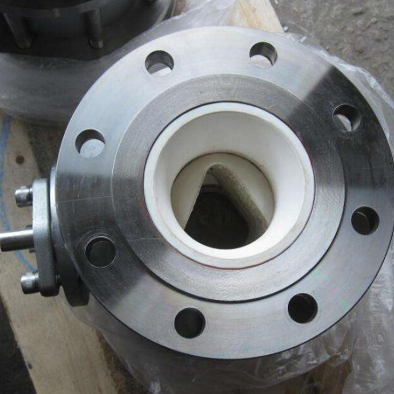

V port ceramic lined ball valve

  • Port size:DN50~300, NPS 2〞~ 12〞
  • Pressure:PN16 ~ 40 CLASS 150/300LB
  • Structure:Full ceramic lined,V port
  • Medium:particle,slag,ash,fiber or others
  • Temperature :-20~300℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:V port ball design for better reguating
V port ceramic lined ball valve introduction
V port ceramic lined ball valve is V port ball design for better reguating function, V port ceramic lined ball valve has corrosion resistance, high temperature resistance, wear resistance and erosion resistance.V port ceramic lined ball valve is used in conveying system of acid, alkali and salt gas, liquid, high temperature steam and mud in petrochemical, metallurgical, papermaking, power station and oil refining industries.AV port ceramic lined ball valve has the advantages of high economy and long use.The driving mode is manual, pneumatic, pneumatic - spring reset, electric, etc.And can design ceramic ball valve according to user's requirement.V port ceramic lined ball valve is suitable for acid, alkali, salt liquid, gas medium environment, hard sealing ball valve is suitable for with particle, fiber medium environment.

V port ceramic lined ball valve technical parameters
Nominal size of ball valve: DN50 ~ DN300 (2 "~ 12")
Pressure grade: PN10 ~ PN40,ANSI 150 ~ 300LB (lb)
Body material: Carbon steel WCB, A105
Stainless steel 304, 316, 304L, 316L
Ball valve inner material: structural ceramics
Connection: Flange connection
Drive mode: manual,pneumatic, electric actuator
Test pressure: strength test 1.5 times nominal pressure
Seal test 1.1 times nominal pressure
Ash test 1 times the nominal pressure
Ceramic ball valve service temperature: -20 ~ 300℃

V port ceramic lined ball valve feature:
· High strength ceramic ball valve
Forged steel shell (A105N, SS304, S316, SS316L and so on can be selected according to the specific working condition), three-stage structure design, high strength of valve body, simple and reliable structure.
· Ceramic ball valve is corrosion resistant
Inside the valve and the medium direct contact is the valve ball, the seat and the lining of the body are made of alumina ceramic materials.Structural ceramics have excellent chemical inertia, almost no reaction with the vast majority of chemical media, making all-lined ceramic hard sealed ball valves suitable for the vast majority of highly corrosive media.
· Abrasion resistance of ceramic ball valve
Structural ceramics also have extremely high hardness (up to HRA88 or higher), second only to diamond, so full lined ceramic hard seal ball valves are one of the best valve types in various high wear conditions.
· Ceramic ball valve zero leakage
Many toxic or highly corrosive media, if leaked, can cause serious injury to personnel and equipment, so valve fittings must be fully sealed.The surface contact hard sealing structure is between the fully lined ceramic ball valve and the seat. The sealing surface is processed by precision grinding and strict testing to ensure zero leakage.
· Low torque value of ceramic ball valve
Valve ball and valve seat are made of structural ceramics with good self-lubrication, small valve opening resistance and smooth switch.The excellent wear resistance of structural ceramics ensures that the torque of the valve will not change significantly after long-term use.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
