Ball valve manufacturer

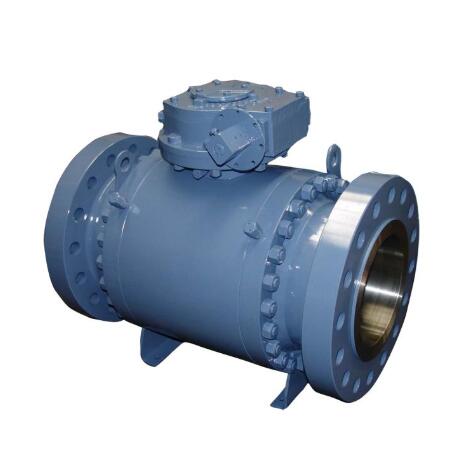

Trunnion Mounted Ball Valve 24 Inch 150LB

Port size：DN600 (24'')
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged end or others
Feature：Full range size is optional.

Product Description

Trunnion Mounted Ball Valve 24 Inch 150LB,China Trunnion mounted ball valve manufacturer,factory,company and supplier for Trunnion Mounted Ball Valve 24 Inch 150LB with different material,full bore or reduced bore,side entry for different industries.

Trunnion Mounted Ball Valve 24 Inch 150LB specification:

Design standard: API 6D.
Body material: Cast steel,Forged steel
Nominal diameter: 24 Inch.
Pressure: 150LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

Trunnion Mounted Ball Valve 24 Inch 150LB other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

Trunnion Mounted Ball Valve 24 Inch 150LB Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Trunnion Mounted Ball Valve 24 Inch 150LB Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
