Ball valve manufacturer

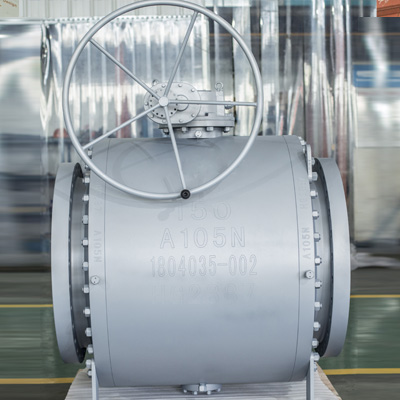

3PC A105N Full bore trunnion ball valve

  • Port size:2'' ~ 56''
  • Pressure:Class 150 ~ Class 2500
  • Structure:2PC/3PC,FB/RB/Trunnion mounted
  • Medium:Water,oil,steam,gas
  • Temperature :-46~500℃
  • Body material:WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
  • Connection:Flange
  • Feature:Forged steel ball valve
3PC A105N Full bore trunnion ball valve introduction:
3PC A105N Full bore trunnion ball valve is designed in accordance with API 6D featuring 2 PC or 3 PC split body, side entry or top entry design. 3PC A105N Full bore trunnion ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, 3PC A105N Full bore trunnion ball valve can be used in working temperature range -46ºC~ 500ºC. 3PC A105N Full bore trunnion ball valve is optional designed with Double block and bleed or double piston type. 3PC A105N Full bore trunnion ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry trunnion mounted ball valve can be used for in-line maintenance services.

3PC A105N Full bore trunnion ball valve specification:
Trunnion mounted ball valve Size NPS 2″ - NPS 56″
Pressure Rating Class 150LB - Class2500LB
Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face ASME B16.5, API 6D
End Connection ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection ISO 5208, API 6D
Operation Method Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

3PC A105N Full bore trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

3PC A105N Full bore trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
