Ball valve manufacturer

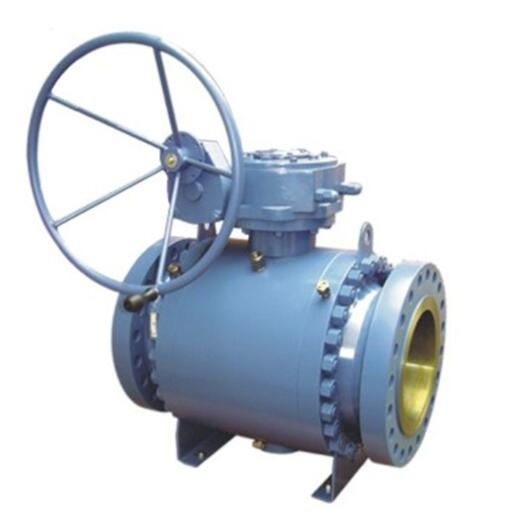

Heavy duty industrial trunnion ball valve

  • Port size:2"~56" (DN50~DN1200)
  • Pressure:CL150-CL2500
  • Structure:Trunnion mounted ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Flange or others
  • Feature:China trunnion ball valve manufacturer
Heavy duty industrial trunnion ball valve is full bore or reduced bore designed in accordance with API 6D featuring 3 PC split body, side entry or top entry design.Heavy duty industrial trunnion ball valve is optional designed with Double block and bleed or double piston type. Heavy duty industrial trunnion ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

Heavy duty industrial trunnion ball valve specification:
Trunnion mounted ball valve Size NPS 2″ - NPS 48″
Pressure Rating Class 1500LB - Class2500LB
Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face ASME B16.5, API 6D
End Connection ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection ISO 5208, API 6D
Trunnion mounted ball valve
Operation Method
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

Heavy duty industrial trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Heavy duty industrial trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
