Ball valve manufacturer

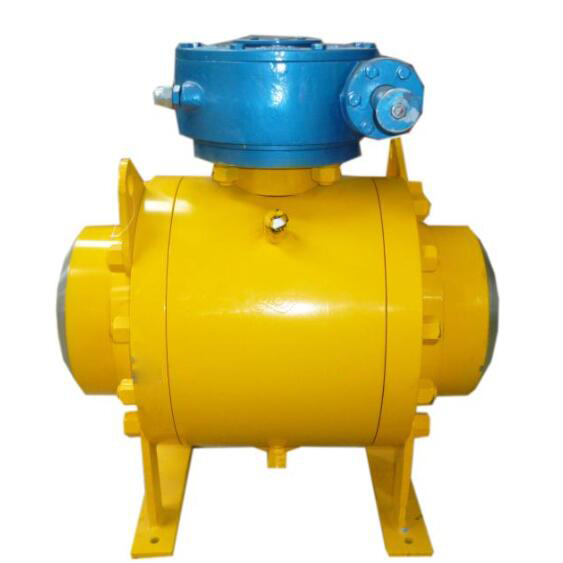

Butt weld BW end trunnion ball valve

  • Port size:2"~48" (DN50~DN1200)
  • Pressure:CL150-CL2500
  • Structure:Trunnion mounted ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:Cast steel or forged steel is optional
  • Connection:Flange,BW is optional
  • Feature:Customized structure is acceptable
Butt weld BW end trunnion ball valve introduction:
Butt weld BW end trunnion ball valve is full bore or reduced bore designed in accordance with API 6D featuring 3 PC split body, side entry or top entry design. Butt weld BW end trunnion ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, Butt weld BW end trunnion ball valve can be used in working temperature range -46ºC~ 500ºC. Butt weld BW end trunnion ball valve is optional designed with Double block and bleed or double piston type. Butt weld BW end trunnion ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

Butt weld BW end trunnion ball valve specification:
Trunnion mounted ball valve Size NPS 2″ - NPS 48″
Pressure Rating Class 150LB - Class2500LB
Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face ASME B16.5, API 6D
End Connection ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection ISO 5208, API 6D
Trunnion mounted ball valve
Operation Method
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

Butt weld BW end trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Butt weld BW end trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
