Ball valve manufacturer

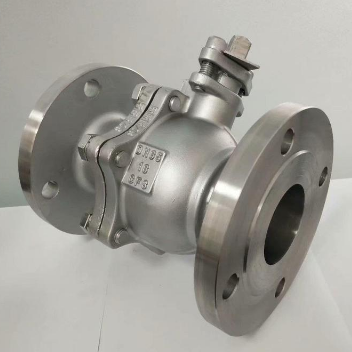

304 316 stainless steel ball valve

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:Class 150 ~ Class 900
  • Structure:Full bore, 3PC
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃
  • Body material:304,316 others
  • Connection:Flange
  • Feature:ISO 5211 direct mount is optional
304 316 stainless steel ball valve introduction:
304 316 stainless steel ball valve is 2 PC or 3 PC design, full bore bore,floating ball design with CF8 CF8M or other stainless steel material, 304 316 stainless steel ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of 304 316 stainless steel ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

304 316 stainless steel ball valve Specification:

Product Name 304 316 stainless steel ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

304 316 stainless steel ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

304 316 stainless steel ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.



Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
