Ball valve manufacturer

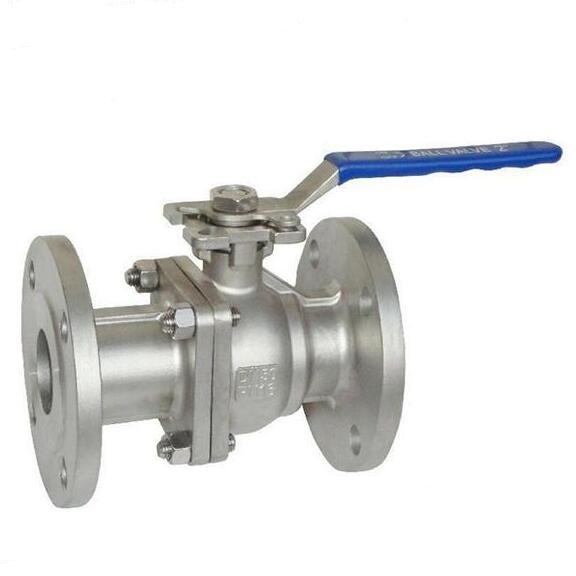

JIS 16K Lever type SS ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:JIS 16K
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange or others
  • Feature:JIS Standard ball valve
JIS 16K Lever type SS ball valve introduction:
JIS 16K Lever type SS ball valve is 2 PC design, full bore bore,floating ball design with stainless steel material,JIS 16K Lever type SS ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of JIS 16K Lever type SS ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

JIS 16K Lever type SS ball valve Specification:
Product Name JIS 16K Lever type SS ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure JIS 16K
5. Connection Ends Flange
6. Working Temp.  -20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

JIS 16K Lever type SS ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
