Ball valve manufacturer

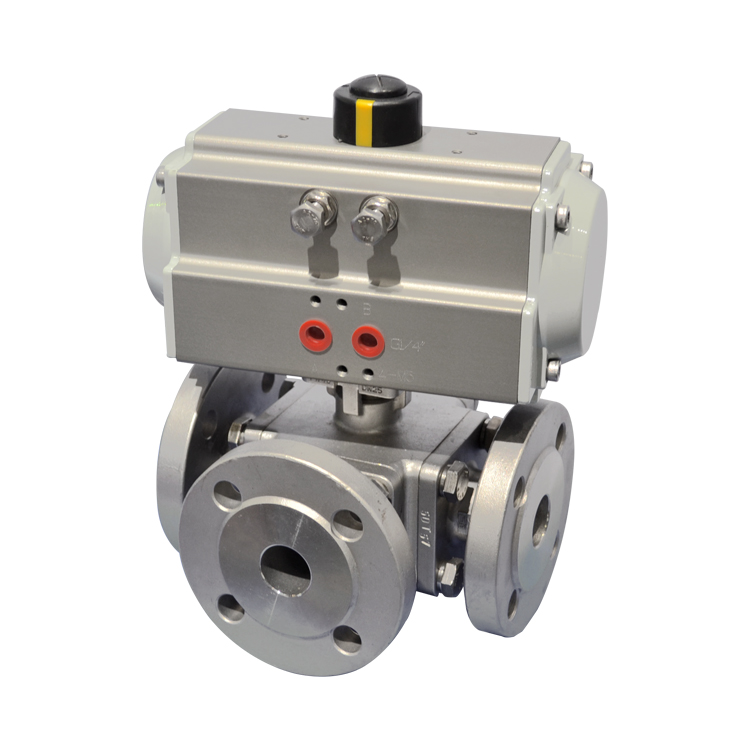

Stainless steel 3 way pneumatic ball valve

  • Port size:1/2'' ~ 24''( 15mm ~ 600mm)
  • Pressure:PN16 ~ 64 CLASS 150/300LB
  • Structure:3 way:T port of L port
  • Medium:Corrosive medium
  • Temperature :-40~450℃
  • Body material:CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Different body structure is optional
Stainless steel 3 way pneumatic ball valve introduction
Stainless steel 3 way pneumatic ball valve consists of pneumatic actuators and 3 way ball valve,Stainless steel 3 way pneumatic ball valve uses reversing solenoid valve to control the valve required switch position.Stainless steel 3 way pneumatic ball valve Pneumatic actuators can achieve 0 degrees, 90 degrees, 180 degrees three positions, belongs to the standard products.

Stainless steel 3 way pneumatic ball valve Feature
1.Stainless steel 3 way pneumatic ball valve has the advantages of compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.
2. Fire resistance, anti - static treatment, valve stem explosion-proof device, to ensure the safety of the system.
3. High platform design in accordance with ISO5211 standard, can be ISO5211 standard actuator, direct connection.Good compatibility
4. Silicon sol precision casting valve body, compact structure, high dimensional accuracy.The appearance of Stainless steel 3 way pneumatic ball valve is exquisite.

Stainless steel 3 way pneumatic ball valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 6.4mpa CL150-CL300
Suitable temperature:-30℃~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball, fixed
Body material:WCB, 304, 316, 316L, etc
Valve ball material:WCB, 304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Suitable medium: steam, liquid water, gas, etc

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
