Ball valve manufacturer

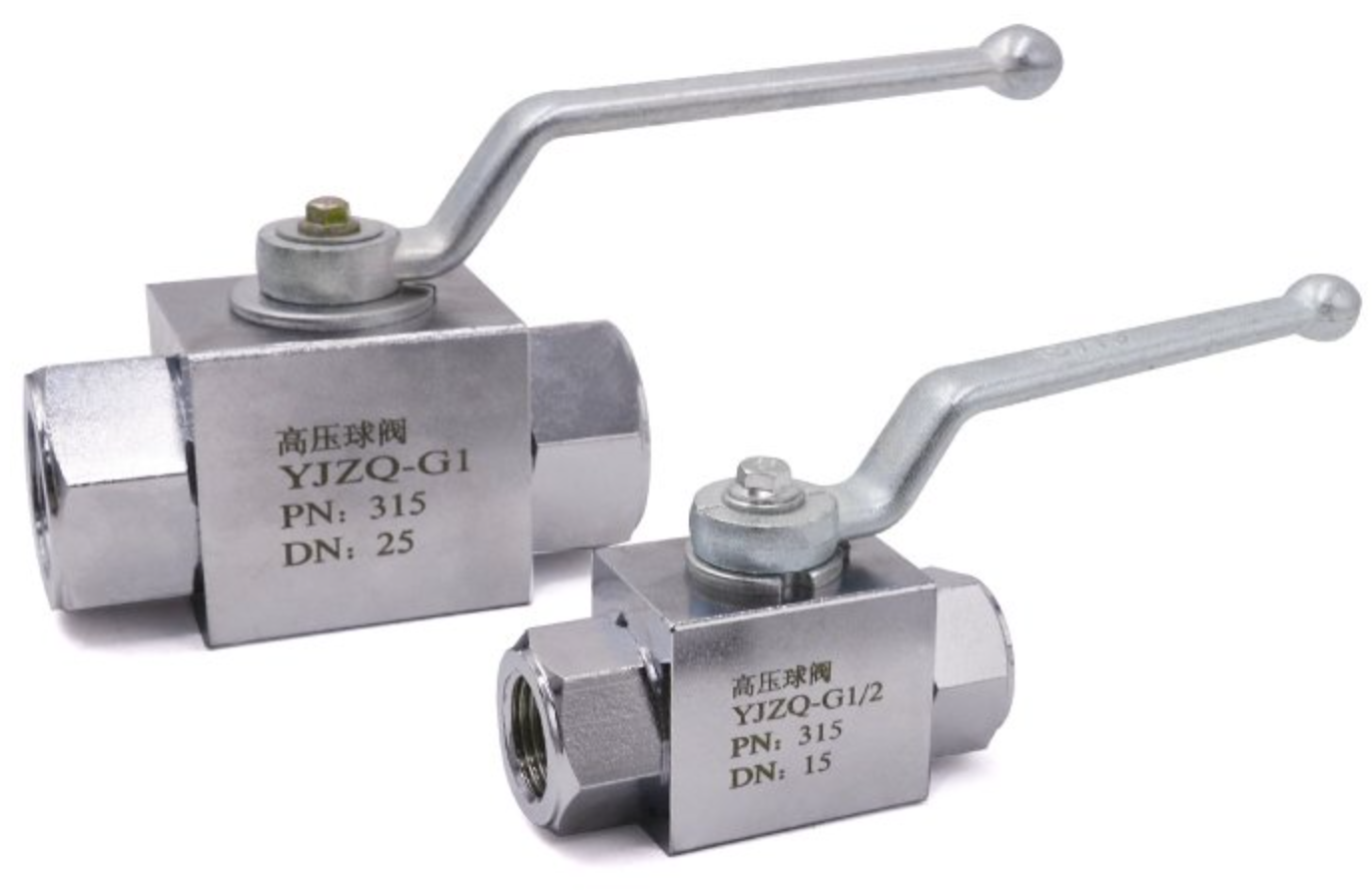

YJZQ High pressure hydraulic ball valve

  • Port size:DN6-DN80
  • Pressure:31.5Mpa,21Mpa or others
  • Structure:One piece
  • Medium:hydraulic oil or others
  • Temperature :-20~+80℃ or higher temperature
  • Body material:A105 F304 F316 F316L or others
  • Connection:Male,Female thread or board type
  • Feature:For high pressure hydraulic oil or others
YJZQ High pressure hydraulic ball valve introduction
YJZQ High pressure hydraulic ball valve is suitable for putting through and cutting off in hydraulic system pipeline.YJZQ High pressure hydraulic ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.Operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)

YJZQ High pressure hydraulic ball valve features
YJZQ High pressure hydraulic ball valve adopts integral forging processing, the hydraulic ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;YJZQ High pressure hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.

YJZQ High pressure hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

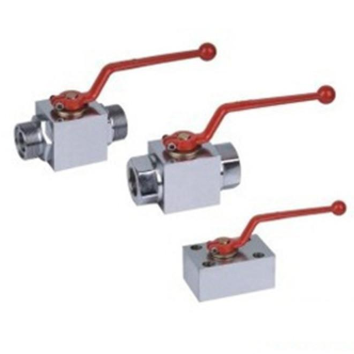

YJZQ High pressure hydraulic ball valve type introduction
Code: Y--Hydraulic
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50,65,80mm
Connection type: N--Femle thread (NG--British pipe thread)
                            W--Male thread
                            B--Board type

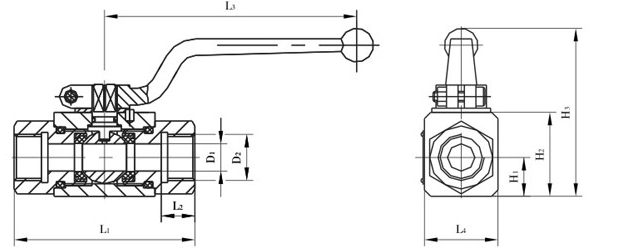

YJZQ High pressure hydraulic ball valve outline dimension (Female thread end)
YJZQ Female hydraulic ball valve outline dimension


Type D1 D2 L1 L2 L3 L4 H1 H2 H3
YJZQ-J10N Ф10 M18×1.5 78 14 105 32 16 36 76
YJZQ-J15N Ф15 M22×1.5 86 16 147 38 19 45 80
YJZQ-J20N Ф20 M27×2 108 18 185 48 25 55 101
YJZQ-J25N Ф25 M33×2 116 20 185 57 28.5 64 111
YJZQ-J32N Ф32 M42×2 136 22 240 75 37.5 84 134
YJZQ-J40N Ф40 M48×2 148 24 240 85 42.5 95 165
YJZQ-J50N Ф50 M64×2 180 26 240 104 52 112.5 180
Note: if you need other size which is not in the list, please contact us to customize.

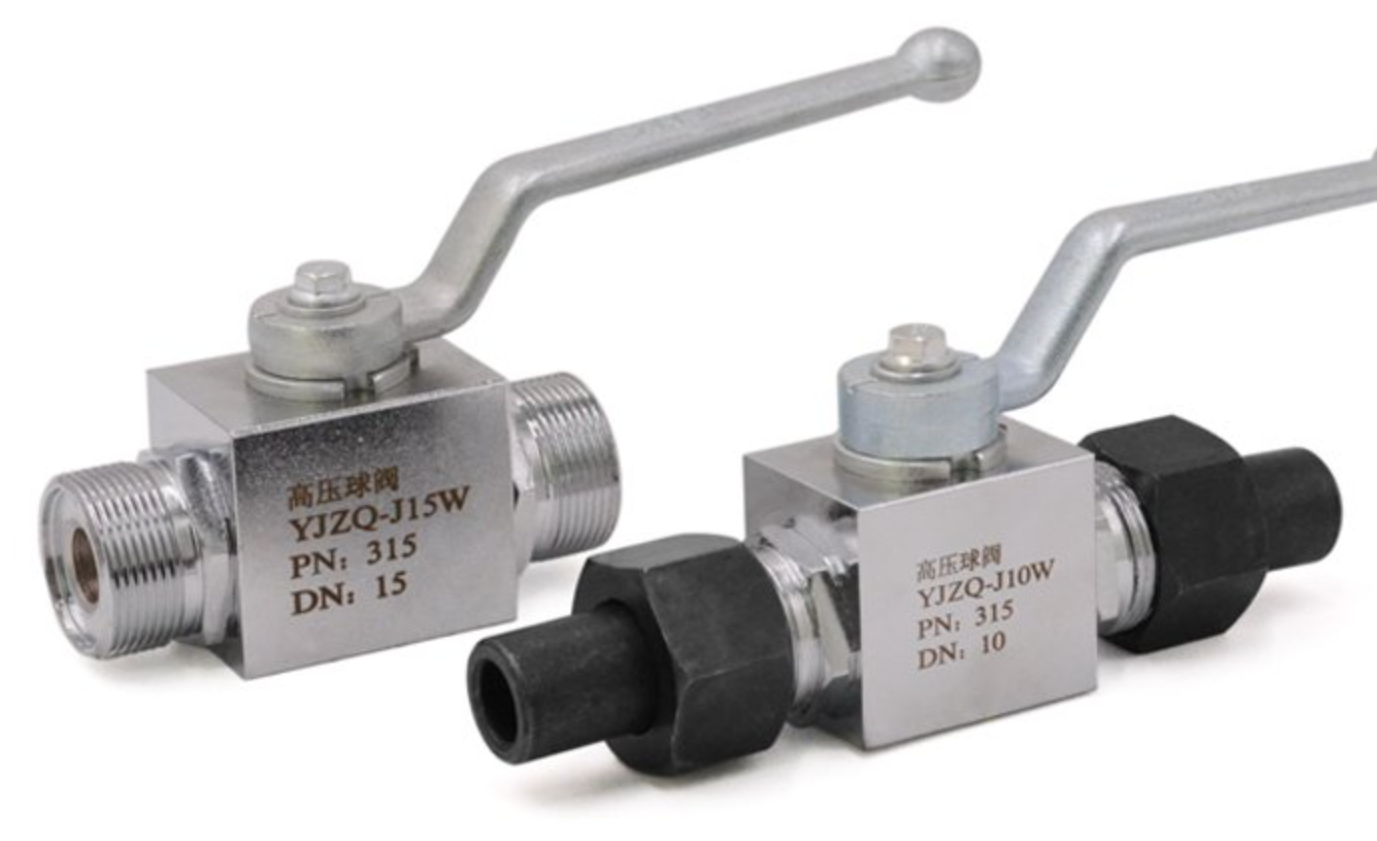

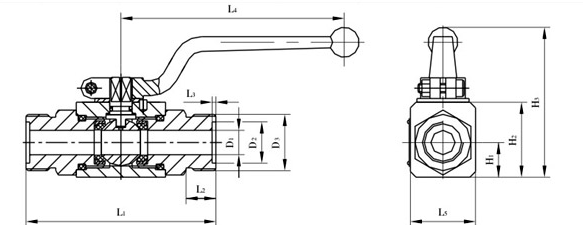

YJZQ High pressure hydraulic ball valve outline dimension (Male thread end)
YJZQ Male hydraulic ball valve outline dimension

Type D1 D2 D3 L1 L2 L3 L4 L5 H1 H2 H3
YJZQ-J10W Ф10 Ф20 M27×1.5 94 16 2 105 32 16 36 76
YJZQ-J15W Ф15 Ф22 M30×1.5 102 16 2 147 38 19 45 80
YJZQ-J20W Ф20 Ф28 M36×2 124 18 2.5 185 48 25 55 101
YJZQ-J25W Ф25 Ф35 M42×2 136 20 2.5 185 57 28.5 64 111
YJZQ-J32W Ф32 Ф40 M52×2 150 20 2.5 240 75 37.5 84 134
YJZQ-J40W Ф40 Ф50 M64×2 180 24 2.5 240 85 42.5 95 165
YJZQ-J50W Ф50 Ф60 M72×2 210 26 2.5 240 104 52 112.5 180
Note: if you need other size which is not in the list, please contact us to customize.

YJZQ High pressure hydraulic ball valve outline dimension (Board type)
YJZQ Board type hydraulic ball valve outline dimension

Type A h H L0 E F L L1 L2 L3 L4 Ф D
YJZQ-J10B 33 42 68 160 38 54 81 45 56 11 10 Ф7 10
YJZQ-J15B 39 46 75 160 42 60 92 52 60 6 16 Ф9 15
YJZQ-J20B 49 50 78 180 50 70 108 60 70 7.5 17 Ф11 20
YJZQ-J25B 52 60 86 220 55 77 114 65 80 11 17.5 Ф11 25
Note: if you need other size which is not in the list, please contact us to customize.
