Ball valve manufacturer

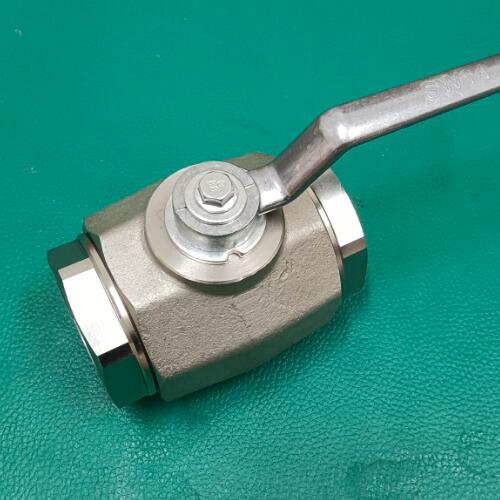

MKH 2 way high pressure ball valve

Port size：DN4-DN50
Pressure：315 bar, 400 bar, 500 bar
Structure：2 way
Medium：hydraulic oil or others
Temperature :-20～80℃
Body material：Carbon steel, stainless steel etc.
Connection：Threaded end or others
Feature：For high pressure hydraulic system

Product Description

MKH 2 way high pressure ball valve manufacturer, factory and supplier. MKH 2 way high pressure ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system for 315 bar, 400 bar, 500 bar high pressure service.Switch fast, convenient, small fluid resistance, as long as the stem rotation 90°, MKH 2 way high pressure ball valve is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.MKH 2 way high pressure ball valve is applicable medium: hydraulic oil, water, glycol, other mixed liquids.

MKH 2 Way high pressure ball valve code information
KHM High pressure hydraulic ball valve code information

(1) Series code: KHM
(2 )Connection code: M**, G**, **LR, **SR, PT**, NPT**
(3) Body material: 1- steel, 2- stainless steel
(4) Ball material: 1- steel, 2- brass, 3- stainless steel
(5) Working temperature: 1, -25 ~ +100℃ 2, -30 ~ +170℃
(6) Other seals: 2-NBR, 4-Vition
(7)Type of handle: 01- aluminum straight handle 02- aluminum crank 03- zinc cast straight handle 04- zinc cast crank 05- steel straight handle 06- steel crank 09- without handle
(8) Design serial number: agreed by the production
(9) Surface treatment: blank - phosphating, G-plating yellow zinc
KHM High pressure hydraulic ball valve structure

KHM High pressure hydraulic ball valve structure
