Ball valve manufacturer

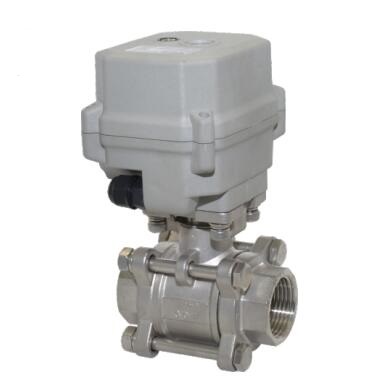

3 Piece Electric Ball Valve 304 316

Port size：1/4"~2" (DN6~DN50)
Pressure：PN10-PN16 CL150
Structure：3PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：304 316 or other stainless steel
Connection：Flange or others
Feature：On off or regulating type

Product Description

3 Piece Electric Ball Valve 304 316 Manufacturer, Factory And Supplier. 3 Piece Electric Ball Valve 304 316 can be 3 PC full bore structure, working voltage: AC110V~230V, DC9~24V, size range from DN6~DN50; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. 3 Piece Electric Ball Valve 304 316 is applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries.

3 Piece Electric Ball Valve 304 316 Feature:
1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.

3 Piece Electric Ball Valve 304 316 performance:

Remark: The torque is according to the size, if parameter is different from above parameter, please contact us.
