Ball valve manufacturer

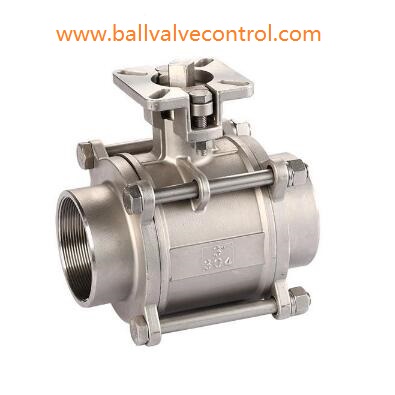

3PC Female stainless steel direct mount ball valve

  • Port size:1/2"~4" (DN15~DN100)
  • Pressure:1000 WOG,2000 WOG
  • Structure:Floating,full bore,3PC
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Thread:BSP,BSPT,NPT,G,RC
  • Feature:ISO 5211 mounting pad
3PC Female stainless steel direct mount ball valve introduction:
3PC Female stainless steel direct mount ball valve is composed of thread end (BSP,BSPT,NPT,G,RC thread) direct mount ball valve and ISO 5211 mounting pad for manual,electric or pneumatic actuator.3PC Female stainless steel direct mount ball valve is available in high quality 304 316 304L 316L and other stainless steel in either RF,NPT, SW, BW connection ends with 1000 WOG,2000 WOG,PN16 PN25 PN40 PN64 Pressure class.3PC Female stainless steel direct mount ball valve is available in sizes 1/4", 3/8", 1/2", 3/4", 1" 1 1/4", 1 1/2", 2",2 1/2'',3'',4''.
3PC Female stainless steel direct mount ball valve is ideal for any water type of environment,such as waste water, industrial or commercial use, chemical, petro and oil industries and services.

3PC Female stainless steel direct mount ball valve design parameter:
direct mount ball valve size:1/2" - 4" (inches)
Structure:Flaoting ball, full bore, 2 piece
Working Pressure : 1000 WOG,2000 WOG
Temperature Rating : -29~150℃ (soft seat);-40~450℃ (metal seat)
direct mount ball valve is long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
Test Standard: API 598
Vacuum Service to 29" Hg
End Connections: thread end (BSP,BSPT,NPT,G,RC thread)

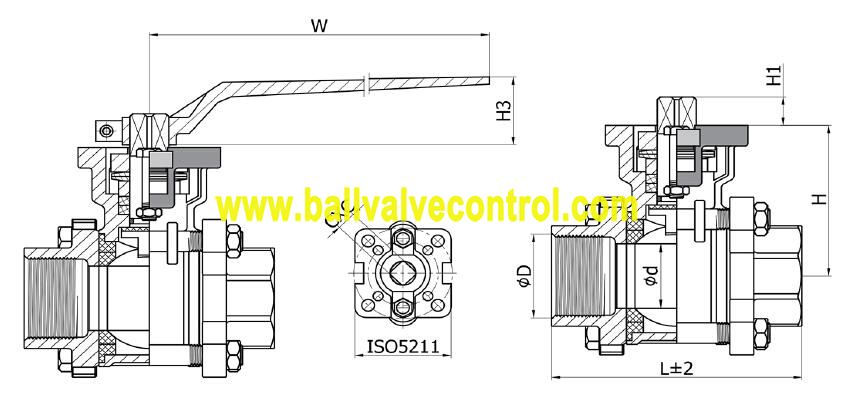

3PC Female stainless steel direct mount ball valve design structure:
3PC Female stainless steel direct mount ball valve structure

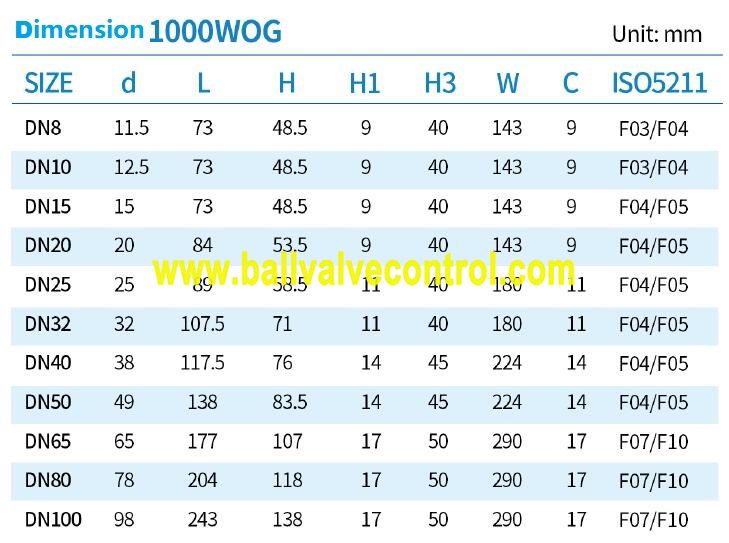

3PC Female stainless steel direct mount ball valve design dimension:
3PC Female stainless steel direct mount ball valve dimension



Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
