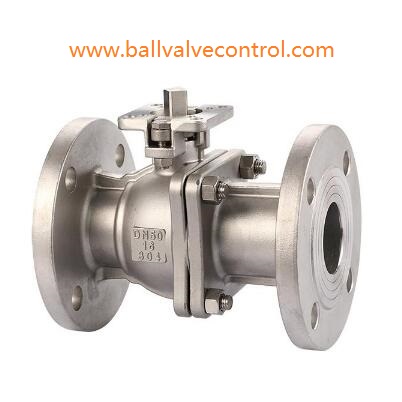

2PC Flange end high platform direct mount ball valve

2PC Flange end high platform direct mount ball valve introduction:
2PC Flange end high platform direct mount ball valve is composed of flange/thread/weld high platform direct mount ball valve and ISO 5211 mounting pad for manual,electric or pneumatic actuator.2PC Flange end high platform direct mount ball valve is available in high quality 304 316 304L 316L and other stainless steel in either RF,NPT, SW, BW connection ends with ANSI 150LB 300LB,600LB,1000 WOG,2000 WOG,PN16 PN25 PN40 PN64 Pressure class. 2PC Flange end high platform direct mount ball valve is available in sizes 1/4", 3/8", 1/2", 3/4", 1" 1 1/4", 1 1/2", 2", 2 1/2",3'',4'' and 5".
2PC Flange end high platform direct mount ball valve is ideal for any water type of environment,such as waste water, industrial or commercial use, chemical, petro and oil industries and services.

2PC Flange end high platform direct mount ball valve design parameter:
Size:1/2" - 5" (inches)
Working Pressure : 1000 WOG,2000 WOG
Temperature Rating : -29～150℃ (soft seat);-40～450℃ (metal seat)
Long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
Test Standard: API 598
Vacuum Service to 29" Hg
End Connections: Flange End, Threaded End, Socket Weld, Butt Weld

2PC Flange end high platform direct mount ball valve structure:

2PC Flange end high platform direct mount ball valve Advantages:
1. 2PC Flange end high platform direct mount ball valve fluid resistance is small, and the resistance coefficient is the same as the pipe section of the same length.
2. 2PC Flange end high platform direct mount ball valve is Simple structure, small volume and light weight.
3. 2PC Flange end high platform direct mount ball valve is Compact and reliable. At present, the sealing surface material of ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
4. 2PC Flange end high platform direct mount ball valve is Easy operation, fast opening and closing, rotation of 90° from full open to full close, convenient for remote control.
5, 2PC Flange end high platform direct mount ball valve is convenient maintenance, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and the 2PC Flange end high platform direct mount ball valve seat is isolated from the media, which will not cause the erosion of the sealing surface.
7, 2PC Flange end high platform direct mount ball valve is wide range of application, size from small to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.When the ball rotates 90 degrees, the inlet and outlet should all appear spherical, so as to cut off the flow.
