Ball valve manufacturer

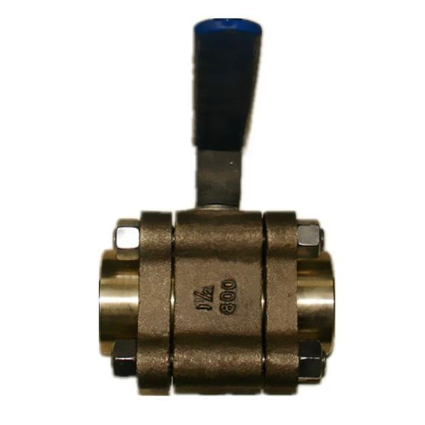

High pressure bronze seawater ball valve

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:CL150-CL1500
  • Structure:3PC,Full bore
  • Medium:sea water or other medium
  • Temperature :-29~180℃
  • Body material:Bronze or others
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:For high pressure seawater
High pressure bronze seawater ball valve introduction:
High pressure bronze seawater ball valve is working for high pressure seawater service with flange, threaded or weleded end,High pressure bronze seawater ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; High pressure bronze seawater ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.High pressure bronze seawater ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

High pressure bronze seawater ball valve specification:
Product Name High pressure bronze seawater ball valve
1. Material Bronze
2. Size 1/2~2inch ( DN15~DN50)
3. Port Full Port
4. Working Pressure 150LB~1500LB
5. Connection Ends Flanged,threaded or welded end
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

High pressure bronze seawater ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

High pressure bronze seawater ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

High pressure bronze seawater ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
