Ball valve manufacturer

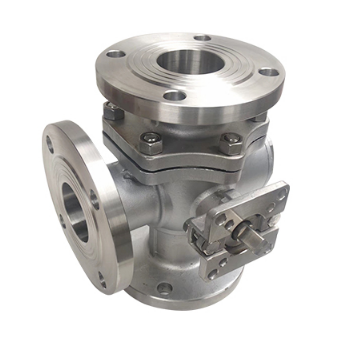

ISO 5211 mount pad 3 way ball valve

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 40 CLASS 150/300LB
  • Structure:3 way:T port of L port
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange or others
  • Feature:ISO 5211 direct mount
ISO 5211 mount pad 3 way ball valve introduction
ISO 5211 mount pad 3 way ball valve is directing mounting 3 way ball valve with ISO 5211 mount pad for lever,electric actuator and pneumatic actuator installation. ISO 5211 mount pad 3 way ball valve is T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

ISO 5211 mount pad 3 way ball valve feature
1. ISO 5211 mount pad 3 way ball valve with T port adopts integrated structure in structure, sealing type of 4-face seat, less flange connection, high reliability, design and realization of lightweight
2. ISO 5211 mount pad 3 way ball valve with L port is long service life, large circulation capacity and small resistance
3. L port 3 way  ball valve is 4-side seated ball valve with L-port, with 2-side seats.L port 3 way  ball valveis mainly used for reversing the flow path.
4. T port 3 way ball valve is  4-face seat ball valve, using 4-face seat, force balance, to ensure reliable sealing on the closed channel.T port 3 way ball valve is mainly used for diverging, mixing flow, reversing and full opening of three channels.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
