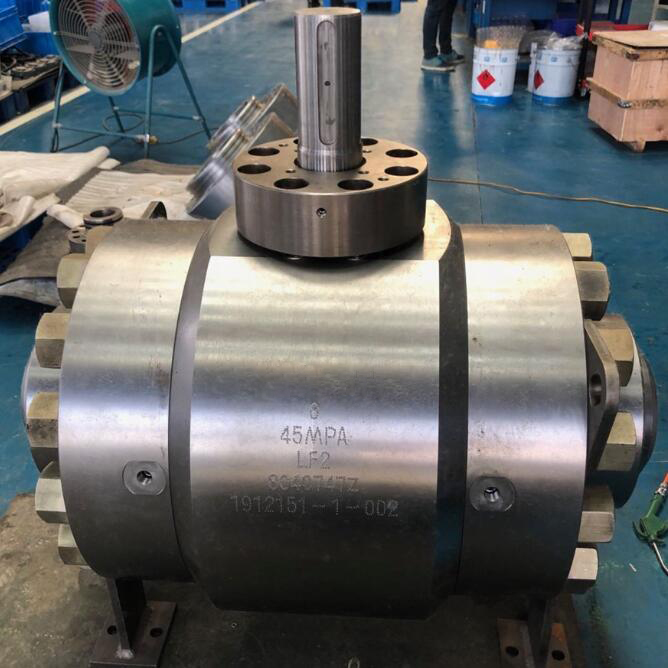

45 Mpa 450 bar trunnion ball valve

Port size：2"~24" (DN50~DN600)
Pressure：45 Mpa 450 bar
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-40～200℃,-60～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange or others
Feature：High pressure ball valve

Product Description

China Trunnion ball valve manufacturer,factory,company and supplier,China high pressure ball valve manufacturer and factory for 45 Mpa 450 bar high pressure trunnion ball valve,full bore or reduced bore,3PC,side entry for different industries.

45 Mpa 450 bar trunnion ball valve specification:

Design standard: API 6D.
Body material: Forged steel LF2
Nominal diameter: 2-24 Inch.
Pressure: 45Mpa
End connection: RTJ or BW
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

45 Mpa 450 bar trunnion ball valve other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

45 Mpa 450 bar trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

45 Mpa 450 bar trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
