Ball valve manufacturer

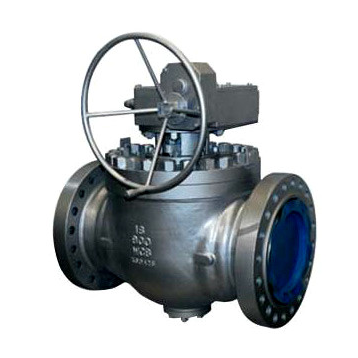

API 6D Top entry trunnion ball valve

  • Port size:2"~24" (DN50~DN600)
  • Pressure:CL150-CL2500
  • Structure:Top entry,trunnion mounted
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB, A105, LCB, LF2, CF8, F304, CF8M, F316, etc
  • Connection:Flange or others
  • Feature:Quick dissemble and quick maintain
API 6D Top entry trunnion ball valve introduction
API 6D Top entry trunnion ball valve is trunnion mounted structure,simple and quick to disassemble in the pipeline, convenient and quick to maintain.In the event of API 6D Top entry trunnion ball valve failure in the line that requires repair, instead of removing the top entry ball valve from the line, remove the flange bolts and nuts, remove the cover and stem assembly together from the body, and remove the ball and seat assembly.API 6D Top entry trunnion ball valve Ball and seat can be repaired online.This maintenance of API 6D Top entry trunnion ball valve saves time and keeps production losses to a minimum.

API 6D Top entry trunnion ball valve feature
API 6D Top entry trunnion ball valve body is integral design, not because the stretch our microcosm ring valve using, sphere and valve seat are adopted top entry structure, maintenance and repair the ball valve does not need to be removed from the pipeline valve, API 6D Top entry trunnion ball valve ball and stem can be adopted one-piece, effective solution to the stem and ball processing clearance, to ensure that the sphere of essence to determine the position and stem blow-out proof protection structure.The stem and bonnet seal of API 6D Top entry trunnion ball valve is not an ordinary packing seal, but a packing box combination seal.API 6D Top entry trunnion ball valve Ball and seat can be PTFE, PPL,Delvon,PEEK or metal hard seal upon customer's request.

API 6D Top entry trunnion ball valve performance
Nominal size: NPS 2 ~ NPS 24
Operating temperature: -46℃ ~ 121℃
Working pressure: CLASS 150 ~ CLASS 2500
Materials:CF8, F304, CF8M, F316, etc
Design standards: API 6D, ISO 17292
Structure length: ASME B16.10
Connecting end: ASME B16.5, ASME B16.25
Test standard: API 598, API 6D
Operation mode: manual, worm gear, pneumatic, electric
Medium: water, oil, natural gas

API 6D Top entry trunnion ball valve design characteristics
1.The top entry trunnion ball valve cover, ball, seat, stem and other parts can be disassembled and installed online to achieve the online maintenance function.
2. with locking device to prevent incorrect operation of  top entry ball valve.
3. Anti-fly stem design prevents abnormal increase of pressure in the cavity from forcing the stem to fly out and causing accidents.
4.Fire prevention and anti-static design.
5.Top entry trunnion ball valve stem and seat are provided with grease filling system.
6. DBB double truncation and discharge functions.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
