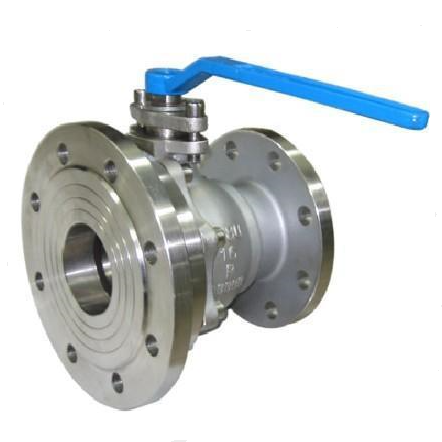

Manual tank bottom ball valve

Manual tank bottom ball valve introduction
Manual tank bottom ball valve is used in the discharge of the reaction tank of the clean industry such as pharmacy, biology, fine chemical industry, food, etc.Manual tank bottom ball valve has the advantages of no dead Angle, no residue, no leakage, good sealing performance and so on.When using agitator, the agitator at the bottom of the material can fully rotate with the water flow to make the material stir evenly. Manual tank bottom ball valve adopts 35 degree orientation to make the material discharge have self-cleaning function, which makes the equipment maintenance more convenient in space.The valve is used with mirror polishing roughness of 0.2-0.45 m, the Manual tank bottom ball valve is more clean.

Manual tank bottom ball valve designed for reaction tank and tank bottom issue open and close control is designed, its structure is not stranded floating straight through ball valve, for flange connection form, the ends of the Manual tank bottom ball valve flange size, for the standard flange at one end, an end with the reaction tank bottom feeding hole arc flange, convenient can link at the bottom of the reaction tank.Manual tank bottom ball valve housing adopts 304 or 316 stainless steel, ball valve ball and stem anti-static design, the product has the characteristics of good anti-corrosion sealing, flexible opening and closing, fast and beautiful appearance, high strength, durable.

Manual tank bottom ball valve specification
Nominal diameter: DN15~DN200
Driving mode: pneumatic, electric, handle
Working pressure: PN10-PN40,CL150-CL300
Operating temperature: -15~300℃
Sealing material: hard sealing
Ball material: WCB, SS304, SS316, SS316L
Material of valve body: WCB, SS304, SS316, SS316L
Medium: water, gas, oil, food, etc
Application: chemical industry, petroleum, metallurgy, pharmacy, pesticide, dyestuff, food processing, etc

Manual tank bottom ball valve standard
1. Flange connection :HG/T-20592, ASME B165
2. Wall thickness standard :GB/T-26640
3. Design and manufacturing :GB/T-12237, API 6D/608
4. Inspection test :GB/T-26480.API598

Manual tank bottom ball valve design feature
1.ISO5211 platform connection
2. Anti-flying design of threshold pole
3. Anti-static device
4. Adjustable upper seal function
5. Fire prevention structure design
6. Shell dewaxing precision casting
