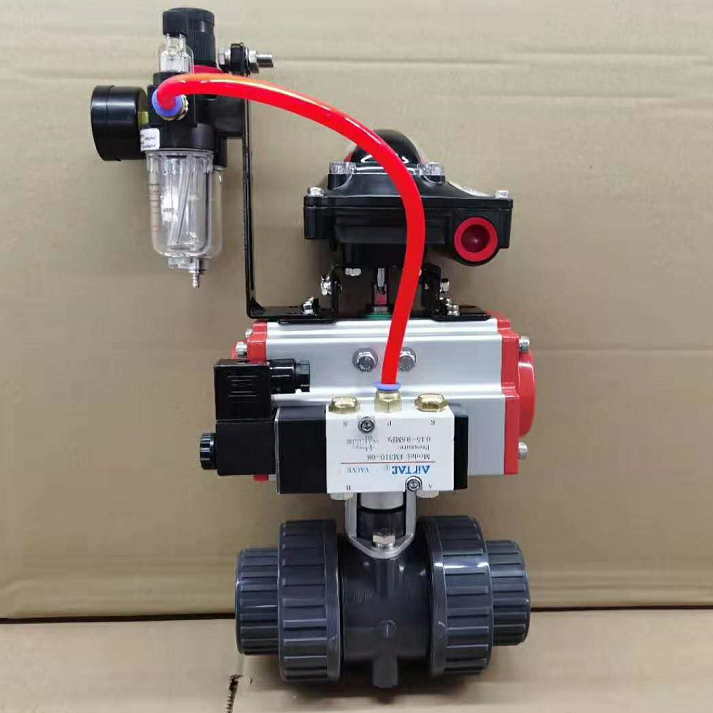

Pneumatic CPVC Plastic ball valve

Pneumatic CPVC Plastic ball valve introduction
Pneumatic CPVC Plastic ball valve technical parameters
Drive: compressed air 5 ~ 7bar(with handwheel)
Nominal size: 15~100mm (flange);15~50mm(thread or weld);
Nominal pressure: 1.0 ~ 1.6mpa
Applicable temperature: 0 ~ +60℃
Connection mode: by command
Ball valve structure: one - piece
Material of valve body:CPVC,or  UPVC, PP and others
Valve ball material: CPVC,or  UPVC, PP and others
Sealing material: PTFE
Suitable medium: PVC compatible chemical solvent for food industry

Pneumatic CPVC Plastic ball valve accessories options:
Response: also known as limit switch (APL310NAPL210N), Remote feedback switch Signal (Explosion proof)(APL410N ITS300)
Solenoid valve: double - action two five - way, single - action two three - way (explosion - proof)PLVD5/2
Triplet: it can stabilize the air source, filter and add lubricating oil AFC200 to the cylinder
Handwheel mechanism: Turn the handwheel mechanism to open and close the valve manually
Electric positioner: Input 4 ~ 20mA signal to realize valve adjustment function YT1000R
Note: Please refer to the selected pneumatic actuators for cylinder parameters

Pneumatic CPVC Plastic ball valve Main features
1. Compact and beautiful appearance
2, with the strength and toughness, the pipe wall is smooth, smooth, fluid transport has a small friction resistance and adhesion.
3, has excellent chemical corrosion resistance, flame retardant performance for self-extinguishing.
4. Light weight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.Low thermal conductivity, about 1/200 of the steel.
5. Excellent aging resistance and uv resistance, so that the normal service life is much longer than other pipeline systems.

Pneumatic CPVC Plastic ball valve Pneumatic actuator features:
1. Extruding aluminum alloy cylinder body, internal surface fine grinding finishing, internal and external use of anti-corrosion technology, the cylinder friction coefficient is small, long service life, strong anti-corrosion performance.
2 Double piston pinion rack design, compact structure, symmetrical installation position, easy to change the output shaft steering, long service life, fast action.The back of piston rack is equipped with compound bearing and guide ring, which has low friction coefficient and long service life.
3. Combined pre-load coating spring, long working life.
4. High precision gear and rack, small meshing clearance, high precision, large output power.
5. Stainless steel fasteners, safe and beautiful, strong corrosion resistance.
6. International standard size: output shaft slot and screw hole;The size of the top mounting hole conforms to NAMUR standard;The air source interface size conforms to NAMUR standard;The size of the mounting hole at the bottom is in line with IS05211, DIN3337 standards for convenient installation of solenoid valve limit switch and other accessories.

Plastic ball valve temperarure range according to the material:
UPVC Suitable temperature: -10 °C~70 °C
CPVC Suitable temperature: -40 °C~95 °C
RPP Suitable temperature: -20 °C~90 °C
PVDF Suitable temperature: -40 °C~140 °C
