Ball valve manufacturer

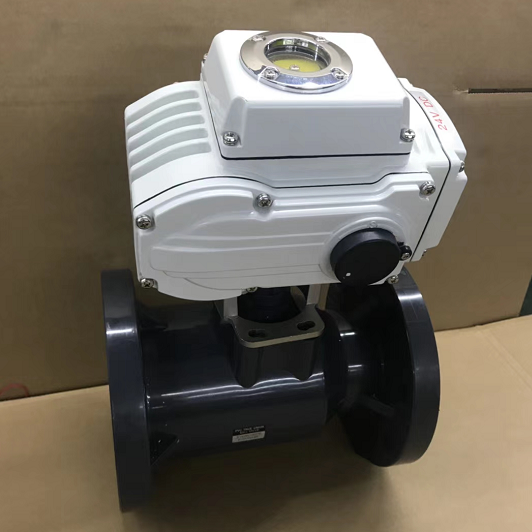

Flanged end motorized PVC ball valve

  • Port size:1/2"~4" (DN15~DN100)
  • Pressure:0.6Mpa-1.6Mpa
  • Structure:Full bore or reduce bore
  • Medium:Water or other special liquid
  • Temperature :UPVC: -10 °C~70 °C, CPVC: -40 °C~95 °C
  • Body material:PVC or PPH PVDF RPP
  • Connection:Flange
  • Feature:Different electric actuaror is optional
Flanged end motorized PVC ball valve introduction
Flanged end motorized PVC ball valve is light in weight and strong in corrosion resistance, and Flanged end motorized PVC ball valve is used in many fields, such as general pure water and drinking water pipeline system, drainage and sewage pipeline system, saline and seawater pipeline system, acid and alkali and chemical solution system and other industries.Flanged end motorized PVC ball valve feature is compact and beautiful appearance, light weight, easy to install, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy to disassemble, simple and easy to maintain .

Flanged end motorized PVC ball valve technical parameter
Nominal diameter DN15~DN100(mm)
Nominal pressure PN1.0MPa
Connection form Flange,true union
Control form Switch type, adjustable type, explosion proof type
Electric ball valve drive way Electric control (with hand wheel)
Working temperature -40℃~140℃ (According to the body material)
Power supply voltage AC220V、AC380V (other customized DC24, etc.)
Ball valve body material PVC or UPVC.RPP,CPVC,PVDF aptional
Sealing material NBR、Viton、EPDM

Flanged end motorized PVC ball valve actuator performance
Electric actuator optional: DH-D series
Type of action: ordinary switching type, regulating type (4 ~ 20mA)
Ambient temperature: -30℃ ~ +70℃
Power supply voltage: AC220V, AC380V (other custom DC24, etc.) 50/60Hz
Protection level: IP67 and IP68 are optional
Functional Options (optional)
Explosion proof type: explosion-proof level: d Ⅱ BT3 / T4
Signal feedback: active signal, S passive signal
Heater: Can dry actuator components in humid environment (optional)
Manual function: The electric actuator is equipped with manual valve opening and closing functions
Pitch type: Input 4 ~ 20mA signal to realize valve adjustment function
Note: Please refer to the optional electric actuator for the parameters of electric actuator

Flanged end motorized PVC ball valve through the standard power supply voltage AC220V (or DC24V, AC110V, AC380V), you can operate the ball valve operation, so that the pipeline media flow or cut off control. Also according to the user's demand, the optional adjustable electric device, accept 4-20MA model, so as to control the ball valve opening operation, to achieve the adjustment of the pipeline medium flow size.

Plastic ball valve temperature range:
UPVC Suitable temperature: -10 °C~70 °C
CPVC Suitable temperature: -40 °C~95 °C
RPP Suitable temperature: -20 °C~90 °C
PVDF Suitable temperature: -40 °C~140 °C
PPH Suitable temperature:-14°C~95°C
