Ball valve manufacturer

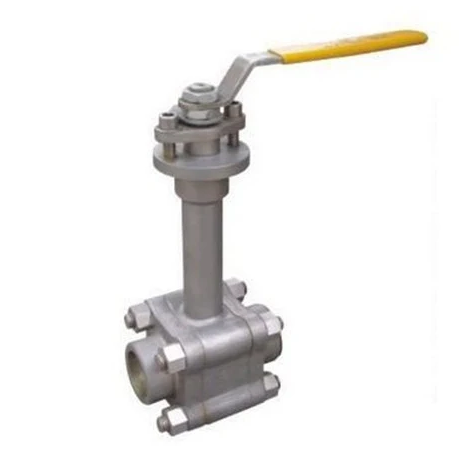

3PC SW lever type cryogenic ball valve

  • Port size:1/4'' ~ 3''
  • Pressure:Class 150 ~ Class 2500
  • Structure:Full bore, 3PC
  • Medium:LNG, liquid hydrogen, nitrogen,oxygen
  • Temperature :-196~29℃
  • Body material:LCB/LCC/LF2/CF8/CF8M/CF3M
  • Connection:SW
  • Feature:Extended bonnet
3PC SW lever type cryogenic ball valve introduction
3PC SW lever type cryogenic ball valve is suitable for the management system of cryogenic liquid storage and transportation equipment. 3PC SW lever type cryogenic ball valve has the characteristics of flexible switch and reliable seal, and 3PC SW lever type cryogenic ball valveall valve can also be used for other management systems of cryogenic and cryogenic medium.3PC SW lever type cryogenic ball valve is mainly used for the output of liquid low-temperature media such as ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products and other low-temperature media.3PC SW lever type cryogenic ball valve is suitable for the pipeline, used to cut off or connect the medium in the pipeline, with different materials, can be applied to different temperatures and media, the minimum working temperature is -196℃.3PC SW lever type cryogenic ball valve for manual, worm drive, pneumatic or electric. Extended bonnet cryogenic ball valve generally uses flange connection, also may use the welding connection.

3PC SW lever type cryogenic ball valve main parameter
Nominal diameter: DN15- DN80
Nominal pressure: 150LB- 2500LB
Working temperature:-196 - +29ºC
Driving means: handle, electric actuator
Material: Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8

3PC SW lever type cryogenic ball valve technology standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

3PC SW lever type cryogenic ball valve Main Parts and Materials
No Part Name Materials
-46°C~-101°C~-196°C
LCB(-46℃), LC3(-101℃), CF8(304)(-196℃)
1 Left Body A352-LCB,LCC,LC3,A351-CF8,A351-CF8M
2 Seat PTFE,RPTFE,PEEK,PPL,POM,KARBATE
NYLON,MOLON,DEVLON
3 Ball A182-F304,F316
4 O-ring VITON
5 Gasket Flexible graphite+304,flexible graphite+316,PTFE
6 Bolt A194-4,8,8M
7 Nut A320-L7,A193-B8,B8M
8 Right body A352-LCB,LCC,LC3,A351-CF8,CF8M
9 Spring ss304,316
10 Small ball PTFE
11 Thrust washer A182-F6,F316,F316
12 Stem Flexible graphite,PTFE
13 Gasket A182 F6,F304,F316
14 Packing A352 LCB,A351 CF8
15 Gland 1025,stainless steel
16 Gland flange A216 WCB
17 Stop plate 1025
18 Lever 1035,stainless steel
19 Screw A352-LCB,LCC,LC3,A351-CF8,CF8M
20 Screw 1035,stainless steel
21 Extended bonnet A352-LCB,LCC,LC3,A351-CF8,CF8M,
22 Screw 1035,stainless steel
23 Bushing A182-F6,F304,F316

3PC SW lever type cryogenic ball valve Main External Dimensions
Size(in) H (Extension length)(mm)
-46°C -101°C -196°C
1/2 90 110 130
3/4 100 110 140
1 100 120 150
1 1/2 110 130 160
2 110 130 170
3 120 150 190
4 130 160 200
6 140 170 220
8 140 170 220
10 150 180 240
12 150 180 240
14 160 190 250
16 160 190 250
18 160 190 250
20 170 200 260
24 170 200 260


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
