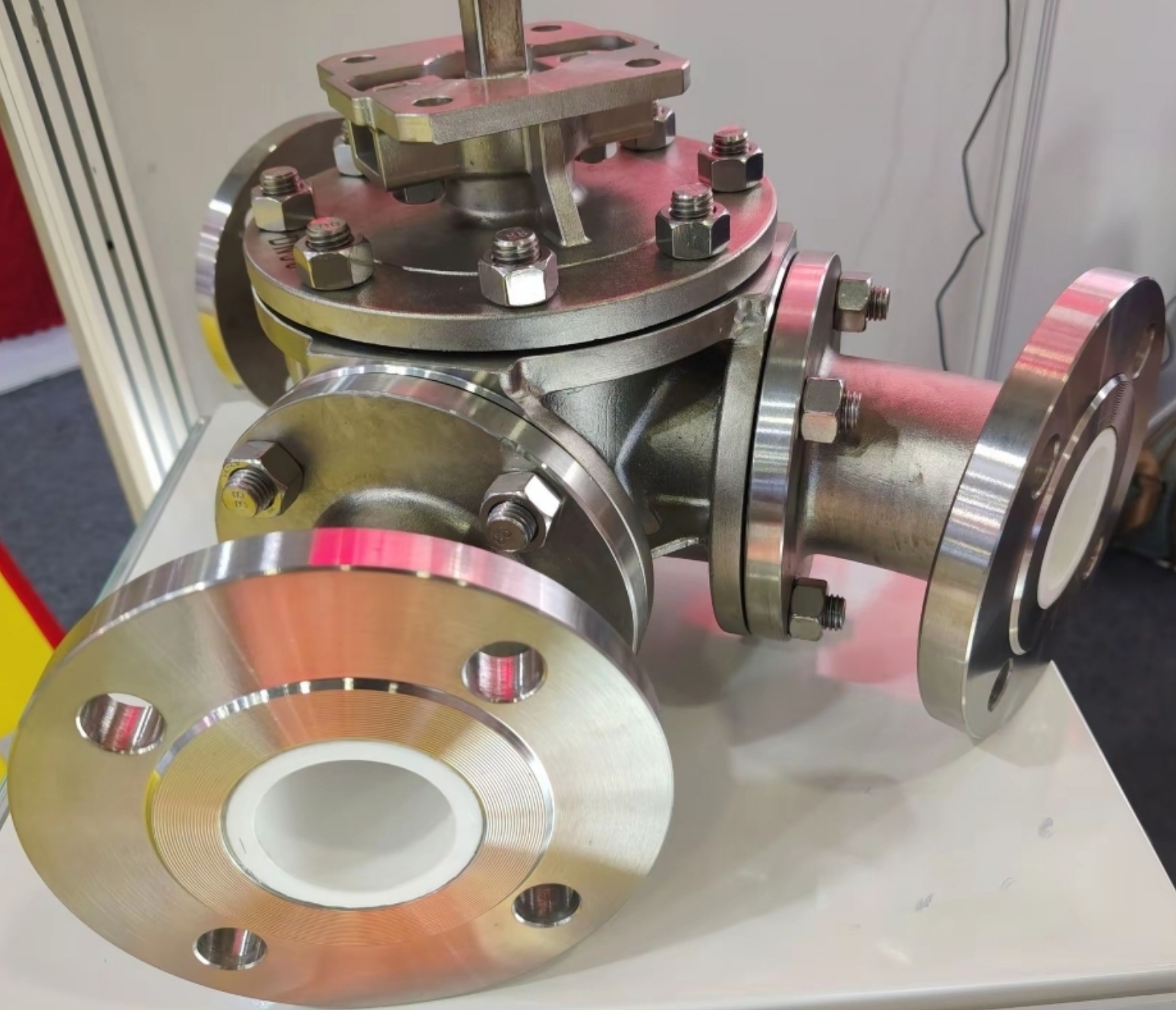

Y type ceramic lined 3 way ball valve

Y type ceramic lined 3 way ball valve Technical Parameters & Specifications

Y type ceramic lined 3 way ball valve supports full-series standardized specifications and personalized customization, fully adapting to various harsh working condition requirements:

Valve Structure: 135° Y-type three-way streamline no-dead-zone structure

Nominal Diameter: DN15 ~ DN300 (1/2" ~ 12")

Pressure Rating: PN10, PN16, PN25, PN40, Class150, Class300

Working Temperature: -20℃ ~ 450℃ (customizable ultra-high temperature resistant type)

Sealing Grade: ANSI VI grade, full zero leakage

Connection Mode: Flange, thread, welding (customizable)

Driving Mode: Double-acting pneumatic, single-acting pneumatic (spring reset)

Optional Auxiliary Accessories: Solenoid valve, limit switch, pneumatic positioner, air filter pressure reducing valve, manual emergency hand wheel

Ceramic Lining Material: 99% High-purity Alumina Ceramic, Zirconia Toughened Ceramic

Valve Body Material: WCB Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel

Applicable Medium: Lithium battery positive/negative powder, chemical slurry, ore pulp, desulfurization slurry, granular building materials, strong acid/alkali corrosive medium, high-temperature flue gas

Control Air Source Pressure: 0.4 ~ 0.6MPa (industrial standard)


Y type ceramic lined 3 way ball valve Unique Y-Type Structural Design Advantages

The biggest core advantage of the Pneumatic Y type 3  way ceramic ball valve lies in its innovative 135° inclined Y-shaped flow channel structure, which abandons the right-angle dead zone defect of traditional T/L-type three-way valves. The overall streamline design realizes smooth transition of fluid in all directions, bringing unparalleled flow control performance for particulate and viscous mediums.

1. 135° Streamline No-Dead-Zone Flow Channel

The Y-shaped three-way passage adopts an integrated smooth curved transition structure without right-angle corners and fluid dead zones. When conveying powder, granules, slurry and other easy-deposition mediums, there is no residual material accumulation in the valve cavity after switching and shunting. Compared with traditional right-angle three-way valves that are prone to scaling, blockage and jamming, this structure fundamentally solves the long-standing industry problem of medium retention and pipeline blockage, ensuring long-term unobstructed operation of the fluid system.

The optimized wide-angle flow path greatly reduces fluid scouring resistance and system pressure loss, achieving more stable and efficient medium transmission. It is also compatible with pipeline pigging and cleaning operations, facilitating daily pipeline maintenance and ensuring high cleanliness of the conveying system.

2. Professional Three-Way Fluid Control Logic

The Y-type structure supports flexible three-way fluid switching, diversion and confluence mixing, covering multiple process working conditions including one-in-two-out shunting, two-in-one-out mixing, and independent channel cut-off. Matched with precise pneumatic 90° rotary switching, it realizes accurate fluid distribution and stable medium mixing ratio, with no turbulence and no medium stratification during operation. It is especially suitable for industrial production links requiring continuous conveying and precise flow control of powdery and slurry mediums.


Y type ceramic lined 3 way ball valve Structural Composition

Pneumatic Y type 3  way ceramic ball valve adopts a modular composite integrated structure, consisting of a high-strength metal pressure-bearing valve body, integral ceramic lining assembly, precision ceramic sealing pair, anti-wear ceramic valve stem, and industrial pneumatic actuator system. The structure is compact, rigid and highly integrated, with strong pressure resistance, structural stability and convenient later maintenance performance.

1 Full Ceramic Lining Medium Contact System

All fluid contact components including valve body inner wall, Y-shaped flow channel, ball core, valve seat and valve stem are made of 99% high-purity alumina ceramic or zirconia toughened ceramic. Through integral high-temperature sintering and micron-level ultra-precision grinding technology, the ceramic parts feature high density, ultra-high hardness and stable chemical inertness. The ceramic lining and metal shell adopt high-temperature bonding + mechanical double fixing process, which effectively prevents lining peeling, cracking and falling off during long-term pneumatic high-frequency switching and medium scouring, and permanently protects the metal valve body from corrosion and wear.

2 High-Strength Metal Valve Body

The outer valve body is integrally cast and precisely machined with WCB carbon steel, CF8 (304) or CF8M (316L) stainless steel. It has excellent mechanical strength, pressure bearing capacity and impact resistance, which can stably bear pipeline system pressure and external mechanical load without deformation. The customized Y-type valve cavity casting process ensures perfect fitting with the ceramic lining, avoiding stress concentration and improving the overall structural stability of the valve.
