Ball valve manufacturer

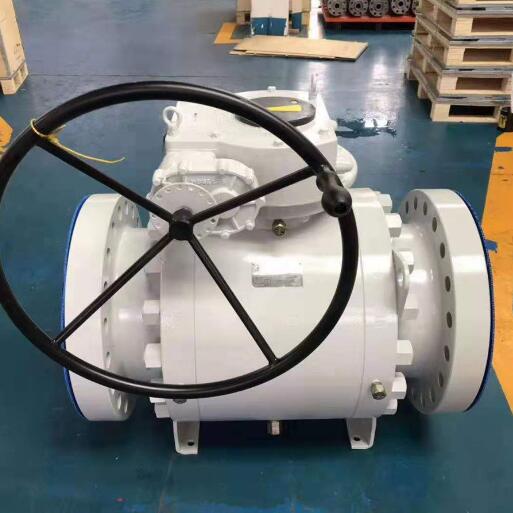

Trunnion metal seated ball valve

  • Port size:2"~56" (DN50~DN1200)
  • Pressure:CL150-CL2500
  • Structure:Trunnion mounted ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-40~200℃,-60~450℃
  • Body material:WCB,A105 LF2 F304 F316 F316L or others
  • Connection:Flange
  • Feature:Metal seated,good seal
Trunnion metal seated ball valve introduction:
China metal seated ball valve,trunnion ball valve manufacturer,factory,company and supplier, Trunnion metal seated ball valve is designed in accordance with API 6D featuring 3 PC split body, side entry design with metal seated design for high temperature medium and system. Trunnion metal seated ball valve can be used in working temperature range -46ºC~ 500ºC. Metal seated trunnion mounted ball valve is optional designed with Double block and bleed or double piston type.Trunnion metal seated ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

Trunnion metal seated ball valve specification:
Size NPS 2″ - NPS 56″
Pressure Rating Class 150LB - Class2500LB
Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face ASME B16.5, API 6D
End Connection ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection ISO 5208, API 6D
Operation Method Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

Trunnion metal seated ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Trunnion metal seated ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
