Ball valve manufacturer

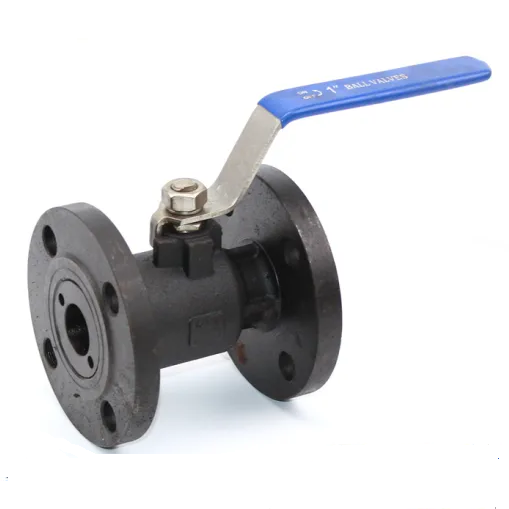

1PC Carbon steel flange floating ball valve

  • Port size:1/2'' ~ 8''( 15mm ~ 200mm)
  • Pressure:PN16 ~ 64 CLASS 150/300LB
  • Structure:1PC, integal body
  • Medium:Water,oil,steam,gas
  • Temperature :-40~350℃
  • Body material:WCB or Other material
  • Connection:Flange
  • Feature:For high temperature medium
1PC Carbon steel flange floating ball valve introduction:
1PC Carbon steel flange floating ball valve is1 PC integral body design, reduced bore,floating ball design with WCB CF8 CF8M CF3 CF3M or other material, 1PC Carbon steel flange floating ball valve is graphite seat material design can bear high temperature, and the face to face length of 1PC Carbon steel flange floating ball valve can meet ball valve, gate valve and globe valve requirement.1PC Carbon steel flange floating ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of 1PC Carbon steel flange floating ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

1PC Carbon steel flange floating ball valve Specification:
Product Name 1PC Carbon steel flange floating ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~8 inch ( DN15~DN200)
3. Port Full Port
4. Working Pressure 150LB~300LB
5. Connection Ends Flange
6. Working Temp.  -40~350ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

1PC Carbon steel flange floating ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

1PC Carbon steel flange floating ball valve Product Feature:
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Graphite seat seal for high temperature.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
